Quality Tools
Crimp-height gauges, micrograph systems, pull testers and inspection equipment for verifying and documenting termination quality. Browse the range below.

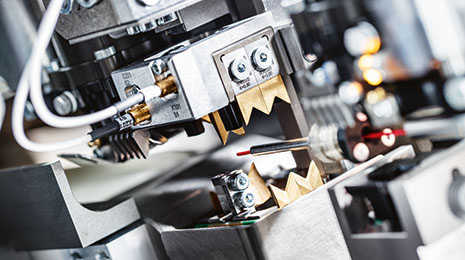

ACD Automatic Conductor Detector
MicroLab 35 is designed for the quick creation of micrographs of terminals up to a diameter of 3 mm. The processing time is short thanks to the fully…
View product →
ACO 08
The electronic crimp-force monitoring system ACO 08 can be integrated into all Schleuniger benchtop crimping presses and into similar third-party prod…
View product →
Adaptive Incision Control (AIC)
The Adaptive Incision Control (AIC) system regulates the incision diameter during the production ensuring an optimized stripping process. It reduces s…
View product →
CHM – Crimp-Height Measuring Device
The Schleuniger CHM crimp-height measurement system distinguishes itself from conventional handheld units by its ease of measuring. The measurement pr…
View product →
Crimp Module Analyzer
Usable on all Komax presses (MCI,BT) Measured results of stroke stability Functional test of the CFA system Short test times Clear summary report, inc…
View product →

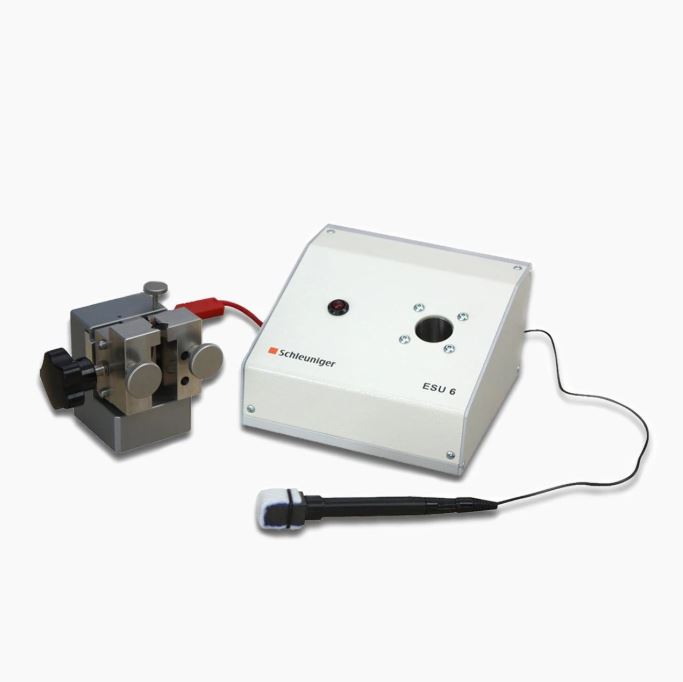

Electrolyte Staining Unit 6
The ESU 6 Electrolyte Staining Unit is a component of the MicroGraph System, used for creating high-quality cross-sectional images of crimp connection…
View product →

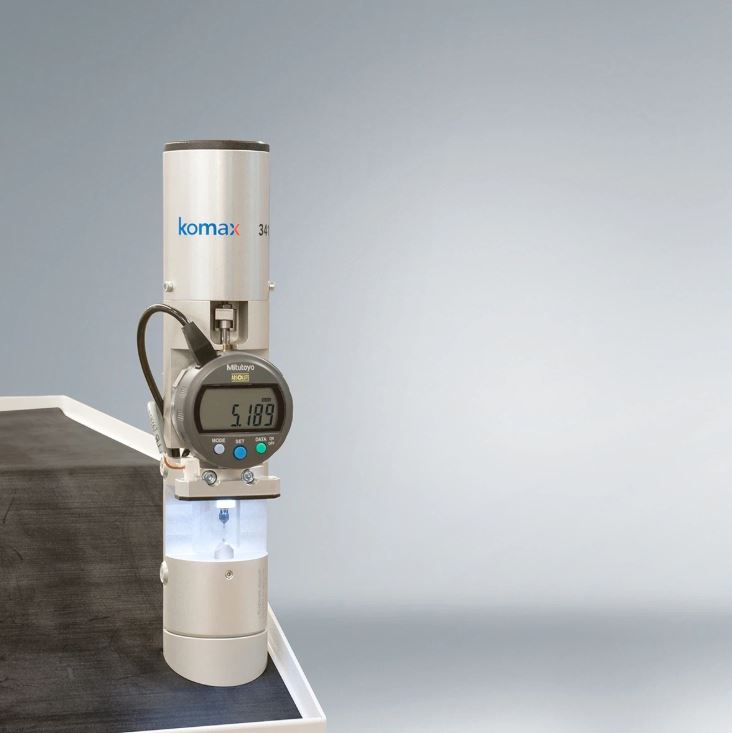

Komax 341
The Komax 341 crimp height measurement device measures terminals up to a height of 8 mm and compares them with the target crimp height. If there is no…
View product →

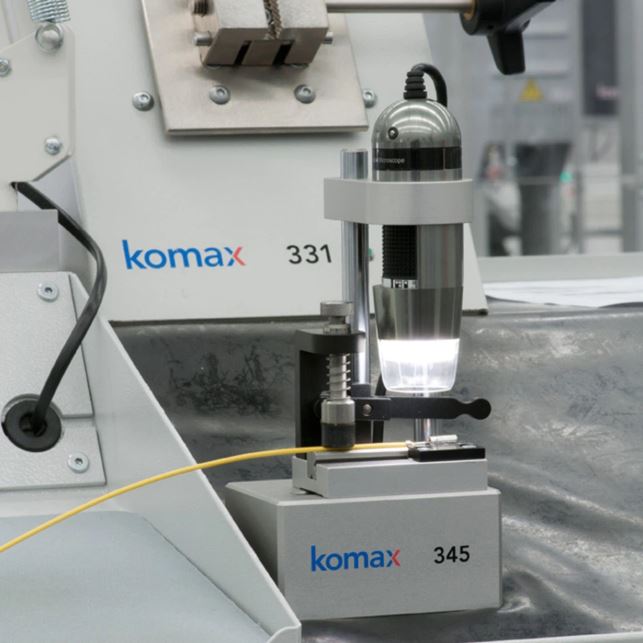

Komax 345
The high-quality, digital Komax 345 microscope enables the control of stripping and crimping quality, even with miniature terminals and the smallest w…
View product →

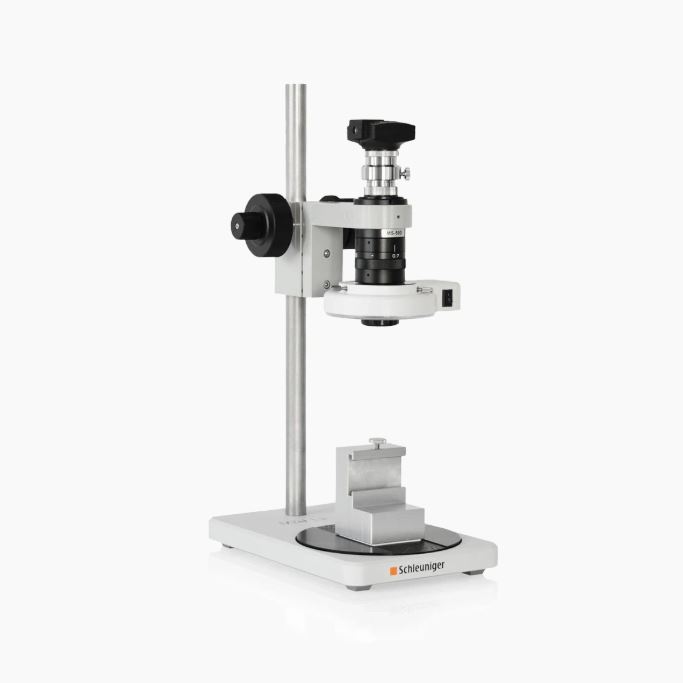

Macro Zoom Unit 1.3
The MacroZoom Unit 1.3 is a component of the MicroGraph System and allows the analysis of pre-cut cross-section samples in real-time using precise opt…
View product →

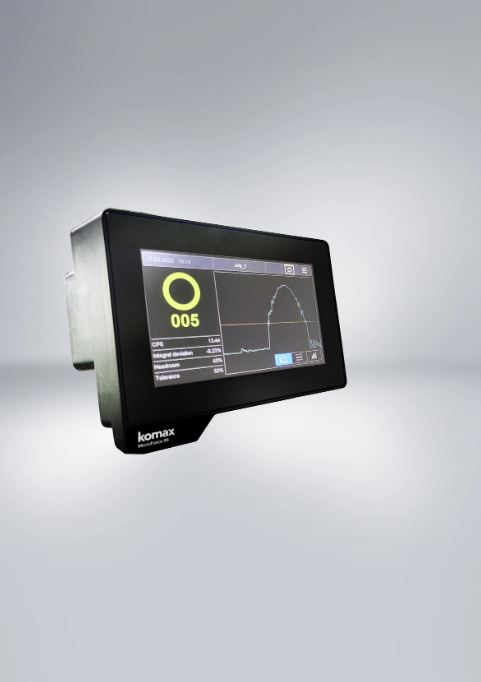

MicroForce 85
The MicroForce 85 crimp monitoring device minimizes faulty crimps, contributes to process optimization using data analysis and ensures traceability in…
View product →

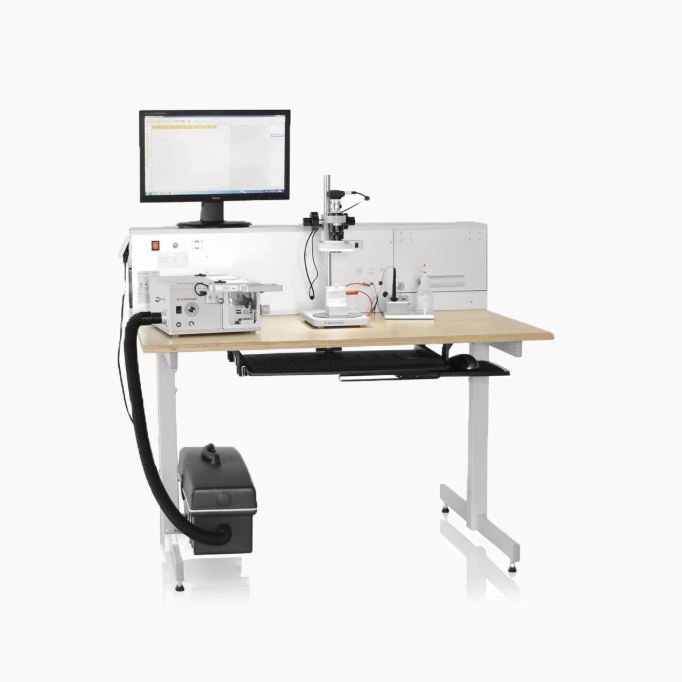

MicroGraph System
The modular MicroGraph System creates high-quality crimp cross-sectional images with the SawPolish and ElectrolyteStaining Unit as well as the MacroZo…
View product →

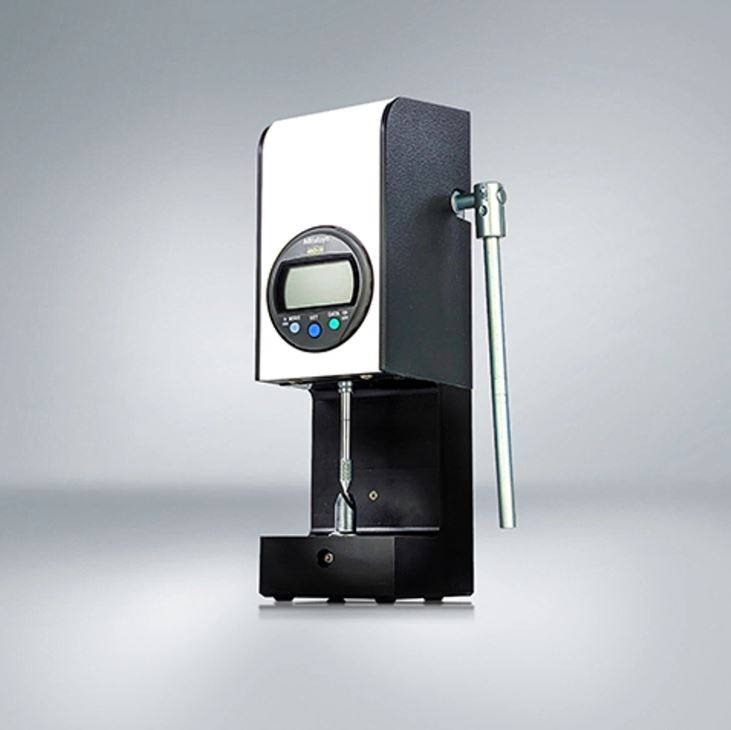

MicroHeight 10
The MicroHeight 10 crimp height measurement device verifies the quality of crimps either as a stand-alone device or integrated into certain Komax mach…
View product →
MicroLab 10
Available in a portable carry-case, the compact MicroLab 10 is designed for contacts and conductors of up to 2.5 mm in diameter.
View product →
MicroLab 11
The MicroLab 11 is a portable all-in-one micrograph laboratory solution with integrated automatic cutting and semi-automatic grinding functions. It pr…
View product →
MicroLab 20
The MicroLab 20 is a fast and reliable micrograph laboratory for quick analysis and customisable reporting options.
View product →
MicroLab 30
Mobile and simple quality control Beneficially handy No re-clamping of sample necessary Subsequent polishing option Reproducible sample preparation Mi…
