| Languages | German, English, French, Italian, Spanish, Czech, Polish |
|---|---|
| Analysis software | WinCrimp |
| Line voltage | 24 V |
| Memory | 16 GB |
| Sensor type | Piezo (active or passive) in base plate or strain sensor to mount on a press frame |
| Power source | Electric |
| Printing capability | via PC using WinCrimp Software |
| Trigger | External (e.g. digital signals) / Internal |
| Number of reference crimps | 1 to 20 |
| Network connection | In combination with pulltester and crimp-height measurement device via WinCrimp software. |
| CE conformity | The crimp-force monitoring system ACO 08 complies with the CE and EMC equipment guidelines relative to mechanical and electrical safety as well as electromagnetic compatibility. |
| Dimensions/height | 41 mm |
| Dimensions/length | 96 mm |
| Dimensions/width | 134 mm |
| Weight | 0.5 kg |
| Temperature operation | 0 – 50 °C |
| Protection class | IP 20 |
| Measurement range N min. | 0 lbf |
| Measurement range N max. | 4496 lbf |
| Software/evaluation and communication module | Wincrimp software for further analysis and statistics (optional) |
| Screen | 4.3″ graphical touchscreen (capacitive) |
| Data interface | TCP/IP / USB interface / digital I/O |
| Unit of measurement | Newton (N) |
| Power requirement | 24 VDC |
Quality Tools

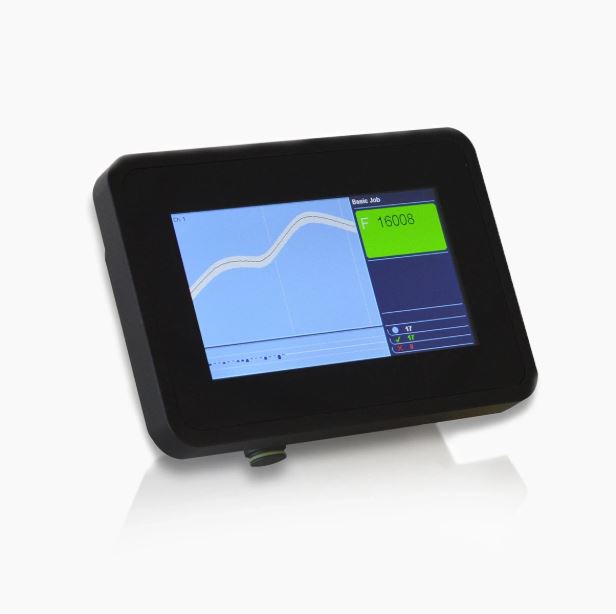

ACO 08
The electronic crimp-force monitoring system ACO 08 can be integrated into all Schleuniger benchtop crimping presses and into similar third-party products.
The ACO 08 was designed to monitor the crimping processes while production is running. It analyzes each individual crimp force curfe in detail in order to optimize processing steps and document quality assurance.With its user-friendly interface, quick and easy setup, and simple referencing, operations and job management is made easy. A barcode interface makes job loading even simpler.The generaton of live-force diagrams while the crimping process is running, ensures fully functional quality products.
Interested in the ACO 08?
Talk to our team for pricing, availability and expert advice.
