| Temperature operation | 0 - 50 °C |
|---|---|
| CE conformity | The SIS 6 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
| Dimensions/height | 400 mm |
| Dimensions/length | 320 mm |
| Dimensions/width | 290 mm |
| Weight | 15 kg |
| Pixel resolution | 1280 x 1024 Pixels |
| Blade type | Carbide 40 x 0.4 mm |
| Protection class | IP 20 |
| Magnification range/camera module | MacroZoom lens with 10 incremental zoom steps |
| Resolution/camera module | USB 2.0 / 1.3 Megapixel Pixels |
| Illumination/camera module | LED ring light |
| Software/evaluation and communication module | CrimpLab micrograph analysis software |
| Analysis software | CrimpLab |
| Saw blade | Carbide (VHM) 40 x 10 x 0.4 mm (1.57 x 0.39 x 0.02”) |
| Power requirement | 90 – 264 VAC, 47-63 Hz, 170 W |
| Power source | Electric |
| Field of View | 1.8 x 1.5 mm up to 11.7 x 8.7 mm (0.07 x 0.06"" up to 0.46 x 0.34"") |
| Cleaning agent (pH) | EL 7 (6.5 - 7.5) |
| Cleaning material | Felt cloth or pen tips |
| Cleaning process | Electrolytic-polishing process (electro-chemical process) |
| Motor | 90 – 264 VAC, 47-63 Hz, 170 W |
| Printing capability | via PC using CrimpLab Software |
| Terminal height | 3 mm |
SawInspect System 6

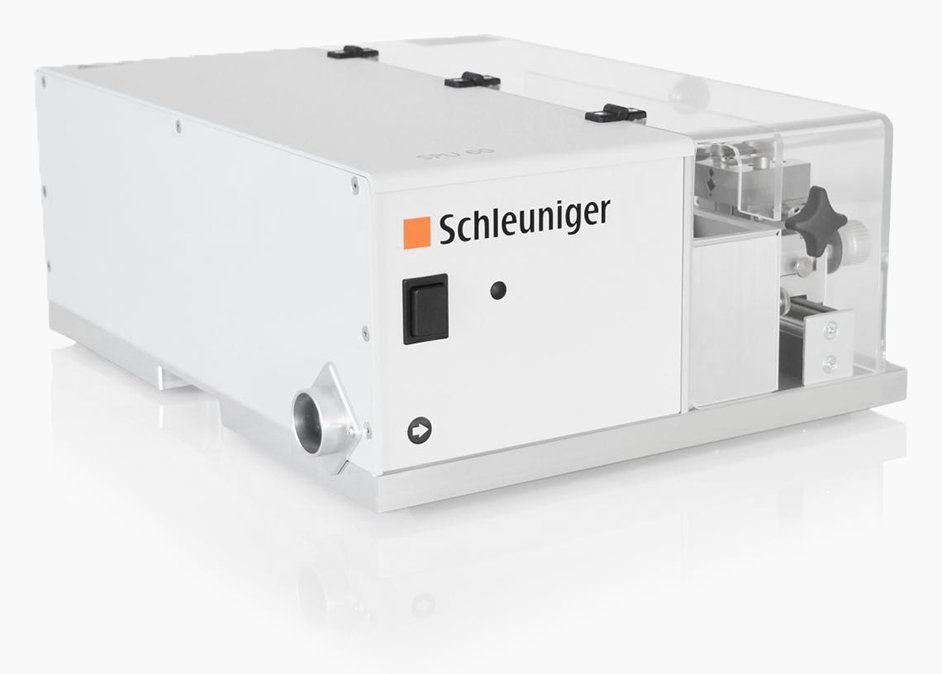

The compact SawInspect System 6 analyzes crimp cross-sections by integrating the SawPolish Unit 6, the MacroZoom Unit 1.3, and the ElectrolyteStaining Unit 6 into one system.
The SawInspect System 6 provides crimp quality control for the wire processing industry. This compact sawing and inspection system allows users to create cross-sectioned samples in just a few quick steps.The individual sample is placed in the holder and aligned with a unique saw blade that ensures a clean cut. After cutting, the sample holder is swiftly moved from the blade to the microscope. It rotates 90°, providing a perfect view of the cross-sectioned sample. All necessary parameters can be analyzed using the CrimpLab software.The system can operate as a standalone unit or be mounted on an automatic machine. Various sample holders and the optional 0.2 mm VHM cutting blade enable the processing of diverse crimp contacts.
