| Reel Diameter | 300 mm (11.81”) for applications in EU-countries (CE safety cover) 500 mm (19.69”) without safety cover (option) |
|---|---|
| Reel Width | Maximum 240 mm (9.52”) |
| Reel Weight | Maximum 20 kg (44.4 Ibs.) |
| Reel Arbor Diameter | 14.5 – 70 mm (0.57 – 2.75“) |
| Pulling Speed | 0-650 U/min. |
| Dimensions (L x W x H) Depth: Width: Height: | 350 mm (13.89”), 700 mm (27.55“) with CE safety cover 350 mm (13.89″) 350 mm (13.89”), 1,070 mm (42.12“) with dancer arm |
| Weight | 25 kg (55.55 Ibs.) |
| CE-Conformity | The PreFeeder 1000 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
| Important Note | Schleuniger recommends that wire samples be submitted in cases where there is doubt as to the processing capabilities of a particular machine. |
De-Reeling Systems

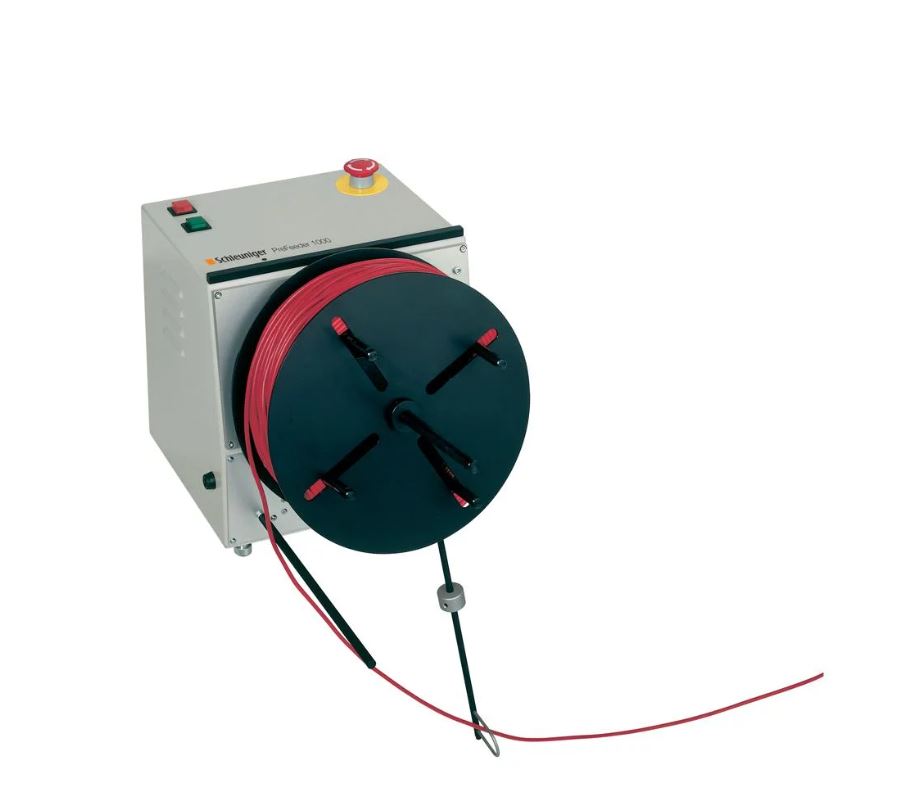

PreFeeder 1000
The PreFeeder 1000 handles 300 mm (11.81”) reels weighing up to 20 kg (44.4 lbs.) and is ideal for tension-free prefeeding to an automatic wire and cable processing machine.
- Accepts reels or loose coils of wire
- Feed rate automatically adjusts to the rate of demand
- Motorized reel for tension-free dereeling
