| Ambient conditions | 59 – 95 °F |
|---|---|
| Wire outer diameter min. | 0.8 mm |
| Wire outer diameter max. | 8 mm |
| Electrical connection | 1 x 200 – 240 V 50/60Hz; 1.2 kVA |
| Compressed-air connection | 6 bar |
| Humidity, non-condensing | < 80 % |
| Ambient temperature | 15 – 35 °C |
| Compulsory smoke extraction | The machines in the Optima range are equipped with a smoke extraction system. |
| Cooling unit | The laser head is cooled by means of an integrated autonomous air-cooling unit. |
| Wire lengths depending on | cable OD |
| Wire type | Single-core, jacketed, unshielded multi-core, shielded multi-core |
| Noise level | < 75 dB |
| Laser | YAG |
| Printer type | Vector marking |
| Laser security | Class I laser compliant with European (CE) and American standards: suitable for work in covered workshops |
Optima 400
Ideal for medium and high production volumes, the Optima 400 automates wire cutting and laser marking, enhancing productivity and quality in aerospace and industrial sectors.
Experience superior wire identification with the fully controlled laser marking process. The Optima delivers high quality, safe, permanent, and high contrast identification on all cables guaranteed “UV-markable”, such as single or multi-wire twisted and jacketed cables. The productivity gains achieved by the Optima are not only related to high marking speeds but also to production optimization of both hardware and software. Key features include easy spool change and cable set-up, automatic marking parameters during production, special features including label printing, traceability, and waste reduction. Additionally, the EasyProd software offers flexibility in sorting production data to reduce spool changes.
Intuitive and user-friendly wire production system
User-friendly features are the new HMI, a touch screen on an adjustable arm, a sliding door for full access, wire feeding assistance, and LED indicators.

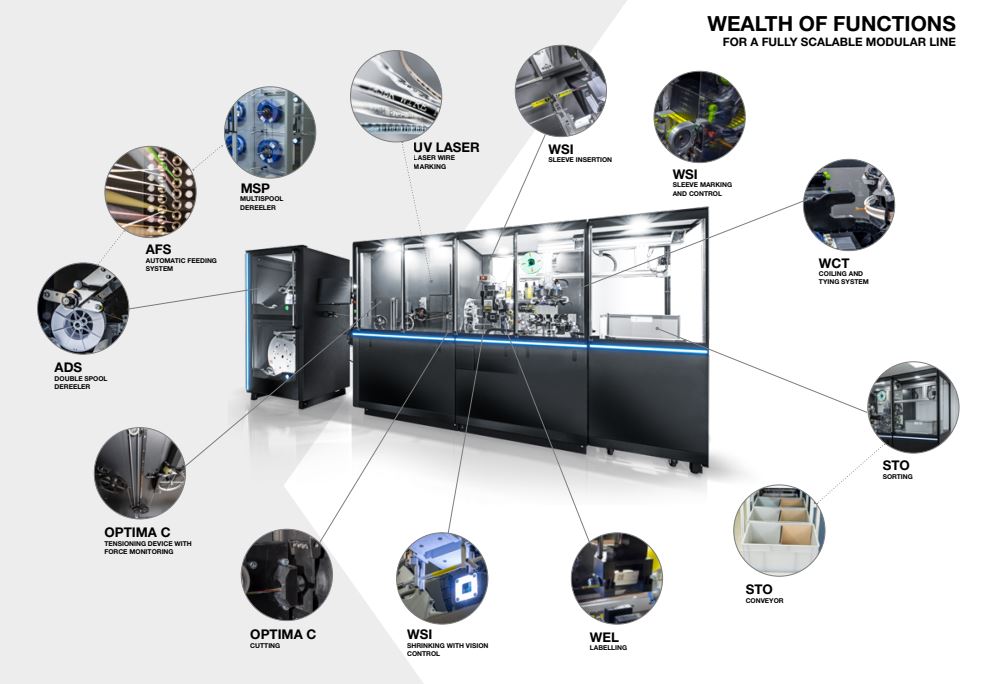

Modular systems for diverse manufacturing needs
The Optima line has been divided into essential functions that can be added over time, allowing the machine to align with technical needs and investment capacities. A wide range of options and accessories is available to further enhance productivity and reliability by increasing the level of automation.
Clear, safe and permanent marking
Unlike hot stamping, the Optima UV laser wire/cable marking process causes a reaction within the wire insulation which results in a safe, permanent and unalterable mark.
Smart features for streamlined production
Optima 400 is equipped with features and options such as automatic feeding system and production mode, label printing, and traceability as well as the waste management system.
