| Wire outer diameter min. | 0.8 mm |
|---|---|
| Wire outer diameter max. | 8 mm |
| Electrical connection | 2 x 200-240 V ; 50/60 Hz ; 20 A-300 mA; 1,2 kVA |
| Compressed-air connection | 6 bar |
| Humidity, non-condensing | < 80 % |
| Ambient temperature | 15 – 35 °C |
| Wire lengths depending on | cable OD |
| Wire type | Single-core, jacketed, unshielded multi-core, shielded multi-core |
| Proceeded sleeves | Sleeves in rolls Length: 50 mm or 2 × 25 mm (precut sleeve) / 1.97 in or 2 × 0.98 in Size: 3.2mm (1/8 in), 4.8mm (13/64 in), 6.4mm (15/64 in), 9.5mm (23/64 in), 12,7mm (1/2 in) |
| Sleeves printer | Up to 3 allowing 3 different types of sleeves to be processed (colour and/or size) |
| Sleeves by cable | Depending on the WSI configuration: 0 to 2 (for 50 mm) 0 to 4 (for 2 × 25 mm) 0 to 11 (for 50 mm) |
| Extremity labels | Thermal printing, size: 40 mm × 46 mm (1.57 to 1.81 in) Information printed tailored to customer needs |
| Noise level | < 75 dB |
Optima 600

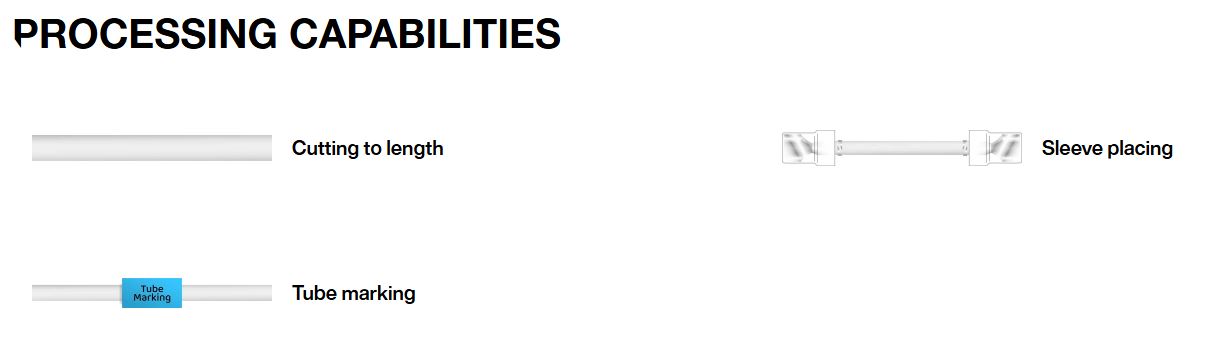

The Optima 600 automates wire cutting, sleeving, shrinking and labeling reducing numerous time-consuming steps to boost high volume and serial production.
Automation is key to increase productivity and quality for high volume and serial production. The modular and and flexible platform Optima 600 is a scalable solution which also satisfies high-mix low volume productions.With fully controlled processes, the Optima 600 promises high quality, eliminating the need for manual operations like labeling and sleeving, which are now fully repetitive and completely operator independent.The Optima addresses a large variety of productions, for different materials, work volumes or industry applications.With its ergonomic and intuitive design coupled with high production speed, the Optima delivers a highly advanced and versatile solution for your needs.
Fully automatic labelling and sleeving
Usually demanding manual operations, such as labelling or sleeving, are now fully repetitive and totally operator-independent, not only in execution but also in control.

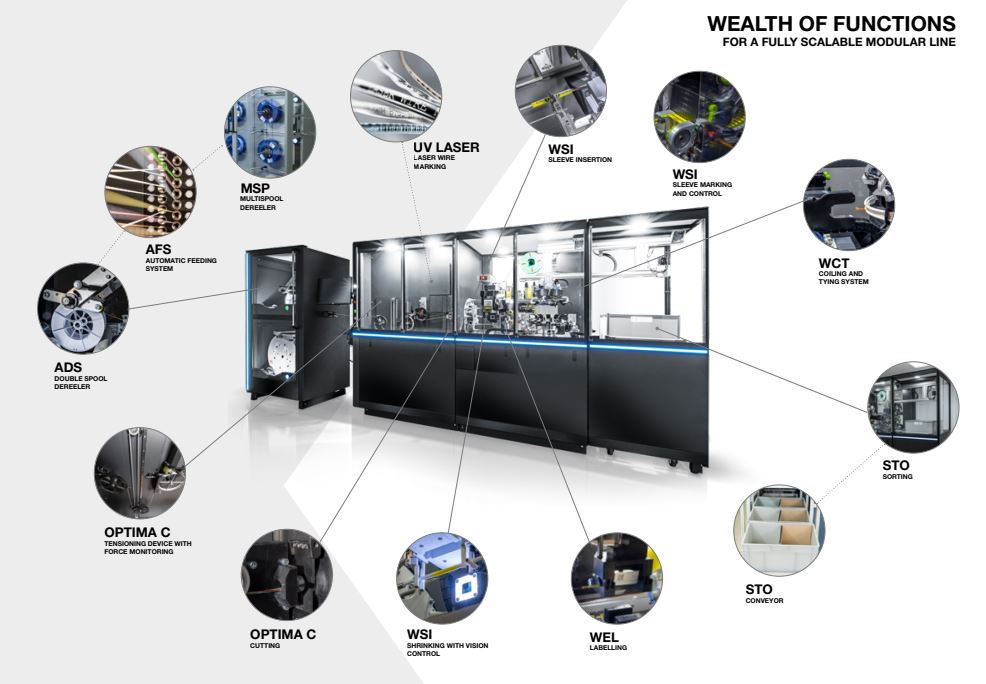

Modular systems for diverse manufacturing needs
The Optima line has been divided into essential functions that can be added over time, allowing the machine to align with technical needs and investment capacities.
Intuitive and user-friendly platform
The new HMI, a touch screen on an adjustable arm, a sliding door for full access, wire feeding assistance, and LED indicators are all features for enhanced usability.
Flexible automation solutions
Across industries, diverse tasks are required throughout the value chain. Flexibility is essential for an automated solution that meets a wide range of needs.
Occupational health and safety
Repetitive manual tasks can lead to musculoskeletal disorders over time. With automation, operators can focus on more added value tasks while preserving their health.
