| Shortest wire length for one-sided processing | 60 mm |
|---|---|
| Shortest wire length for two-sided processing | 240 mm |
| Wire length (standard tray) max. | 4000 mm |
| Strip length side 2 max. | 25 mm |
| Strip length side 1 max. | 25 mm |
| Wire outer diameter max. | 6 mm |
| Wire cross section min. | 0.5 mm² |
| Wire cross section max. | 6 mm² |
| Wire draw-in speed max. | 3 m/s |
| Length accuracy | ±0.5% + 2 mm |
| Wire changer (in steps of 6 wires) | 24 wires |
| Sequence processing (number of wires) | 24 wires |
| Noise level (without crimp modules) max. | 80 dB |
| Electrical connection | 1 × 110-230 V 50/60 Hz, 3 kVA (base machine) |
| Compressed-air connection | 6 bar |
| Air consumption (without modules) | 7 m³/h |
| Network connection | Ethernet |
| Exhaust connection | Upon request |
| Compressed-air quality in accordance with DIN/ISO 8573-1 | Compressed air, dry, filtered (10 μm), oil-free |
| Weight (approx.) | 700 kg |
| Length | 2150 mm |
| Width | 1545 mm |
| Height (with safety cover closed) | 1765 mm |
| Height (with safety cover open) | 2765 mm |
| Minimum clearance around equipment for maintenance work | 1500 mm |
| Floor conditions | Level, stable, clean and vibration-free bearing surfaces. Bearing surface for machine bearing points, made from a continuous base plate of concrete. No expansion joints between machine bearing points. Bearing surface is slip-proof. No plastic or asphalt coatings. |
| Processing outside the specifications | Processing outside the specifications upon request. In case of doubt, we will be happy to provide processing samples for your wires. |
| Hard, tough wires | In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, we will be happy to provide processing samples for your wires. |
Zeta 620 G2
The compact Zeta 620 G2 automates cabinet wiring. It processes wires with cross sections from 0.5 to 6 mm², supports up to 24 wire types, and offers seven ferrule options.

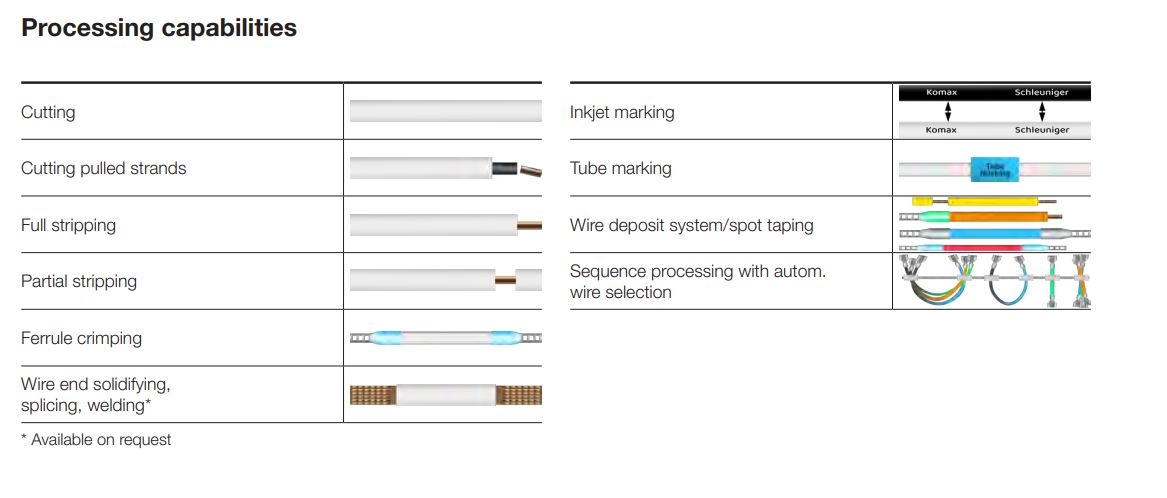

The Zeta 620 G2 is a compact, fully automatic wire processing machine for cabinet construction. It processes wire lists and produces sorted, labeled wire bundles. Integrated inkjet marking and sequential processing enable structured and efficient wire production for cabinet wiring applications. The machine supports up to 24 wire types and seven ferrule types without manual changeovers. Optional modules such as the CM 1/5 and CM 04 Duo extend the processing range from 0.5 to 6 mm². By automating cutting, stripping, and crimping, it reduces manual handling while maintaining consistent processing quality.
Customizable Modules to Scale Production Flexibility
The Zeta 620 G2 can be tailored to specific needs with flexible process modules for ferrules, ultra sonic welding or tube marking in order to reduce waste and optimize costs.
Automate Wire Lists with WIRE Mind
The cloud software WIRE Mind turns manual wire lists into precise machine data. It eliminates planning errors and reduces manual effort and human error.
Cut Cabinet Wiring Time by 50% with Automated Processing
The Zeta 620 G2 reduces time in cabinet construction. Ready-to-use, labeled wire bundles simplify assembly and help streamline the overall workflow.
Compact Machine Design with Integrated Inkjet Marking
The Zeta 620 G2 saves valuable floor space with a compact chassis and integrated inkjet marking. This design fits any facility, reducing footprint while maintaining high output.
Reducing Labor Costs and Human Error
With automated wire processing and labeling, untrained staff can be utilized, freeing experts for complex tasks. Automatic changeovers for up to 24 wire types maximize throughput.
