| Raw Material Diameter | 0,8 mm – 12,5 mm (0.032“ – 0.49“) |
|---|---|
| Conductor Cross Section – Stranded Wire | 0,14 mm2 – 16 mm2 (26 – 6 AWG) |
| Conductor Cross Section – Solid Wire | 0,05 mm2 – 4 mm2 (36 – 12 AWG) |
| Raw Material Length | Min. 23 mm (0.90“), max. 1.000.000 mm (39.370”) |
| Pull-Off Length | Left side: min. 0.1 mm (0.004”) – max. 60 mm (2.36”) Right side: min. 0.1 mm (0.004″) – max. 195 mm (7.68″) |
| Number of Blade Sets with Blade Width | 1 x 16 mm (0.63“) |
| Interfaces | USB-A, USB-C, SMI (D-Sub 15-pol) Ethernet, ESC (Emergency Stop Circuit) |
| Supply | 100 – 240 VAC, 50/60 Hz |
| Compressed Air Connection | 6 bar |
| Dimensions (L x W x H) | 580 x 519 x 329 mm (22.83 x 20.43 x 12.95”) without stand-alone monitor |
| Weight | 42 kg (92.6 Ibs) |
| Declaration of Conformity | The E400 fully complies with the CE and EMC machinery directives relating to mechanical and electrical safety and electromagnetic compatibility, as well as UKCA, UL, and CSA |
| Important Note | We recommend to have your cable sampled by us in case of doubt. |
E400

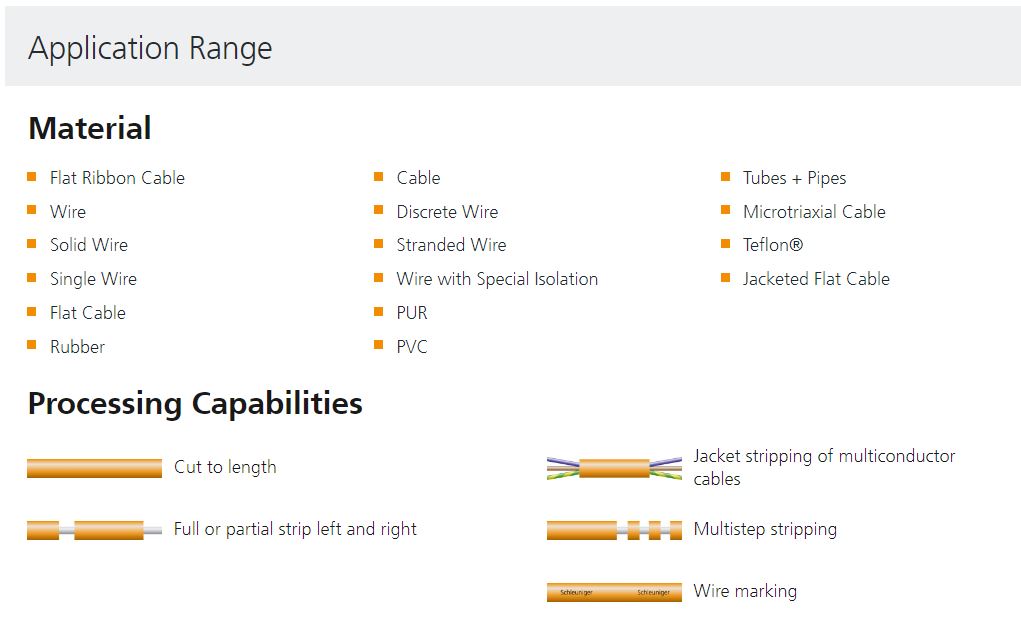

The Cut & Strip Family E400 cut and strip machine impresses with its high performance, optimized operability and outstanding process reliability. Standard applications include the stripping of the outer jacket in several steps, as well as full and partial strips – also on both sides – with conductor cross sections from 0.14 to 16 mm2 (26 to 6 AWG) and cable diameters from 0.8 to 12.5 mm (0.032″ to 0.49″). It processes wires, tubing, ribbon and multiconductor cables as well as insulation such as PVC, PUR or Teflon in high-precision quality. Blades, belts and guides of the predecessor model MultiStrip 9480 are compatible.
The contact pressure on the feeding unit is programmable. This allows for very fine and targeted adjustments. The E400 is equipped with a belt drive system with integrated short piece kit. The gripping axis is programmable and ensures accurate transport of the cable.
The intuitive interface of the S.Drive software facilitates the creation of jobs and article programs, and increases overall performance. Predefined and verified default parameters support quick creation of processing jobs. “Quick-Run Mode” allows immediate production with just a few clicks.
Basic equipment
10″ color touchscreen
LED light
Air Jet unit
Set of V-shaped blades
Swivel guides: inner diameter 2, 4, 6, 8, 10, 12,14 mm
Options
Cable jam detector
Various radius blade sets
Toolbar with magnetic holder for accessories
Software Feature Marking (available from Q3/2024)
