| Wire outer diameter min. | 0.3 mm |
|---|---|
| Wire outer diameter range | 0.012 – 0.31 in |
| Wire length/standard mode | 46.0 mm (1.81“) – 1,000,000mm (39,370″) |
| Wire cross section | 0.05 – 10 mm² |
| Interfaces | Standard: Ethernet for PC, USB Optional: SMI (I/O‘s), prefeeder, wire marker (HS), inkjet printing, stacker / coiler |
| Wire length max. | 1000000 mm |
| Strip length, full stripping on left side max. | 46 mm |
| Strip length, full stripping on right side max. | 152 mm |
| Wire outer diameter max. | 8 mm |
| Wire cross section min. | 0.05 mm² |
| Wire cross section max. | 10 mm² |
| Sequence processing (number of wires) | yes |
| Length accuracy | Repetition accuracy: ± (0.2% + 1.0) |
| Drive system | Belt or Roller |
| Noise level | <70 dB |
| Electrical connection | 100VAC to 240VAC, 50/60Hz |
| Compressed-air connection | 6 bar |
| Air consumption | 10 l/min |
| Network connection | Yes |
| Recommended operating pressure | 6 bar |
| Weight | 25 kg |
| Dimensions/length | 435 mm |
| Dimensions/width | 397 mm |
| Dimensions/height | 360 mm |
| Processing outside the specifications | Processing outside the specifications upon request. In case of doubt, we will be happy to provide processing samples for your wires. |
EcoStrip 9380

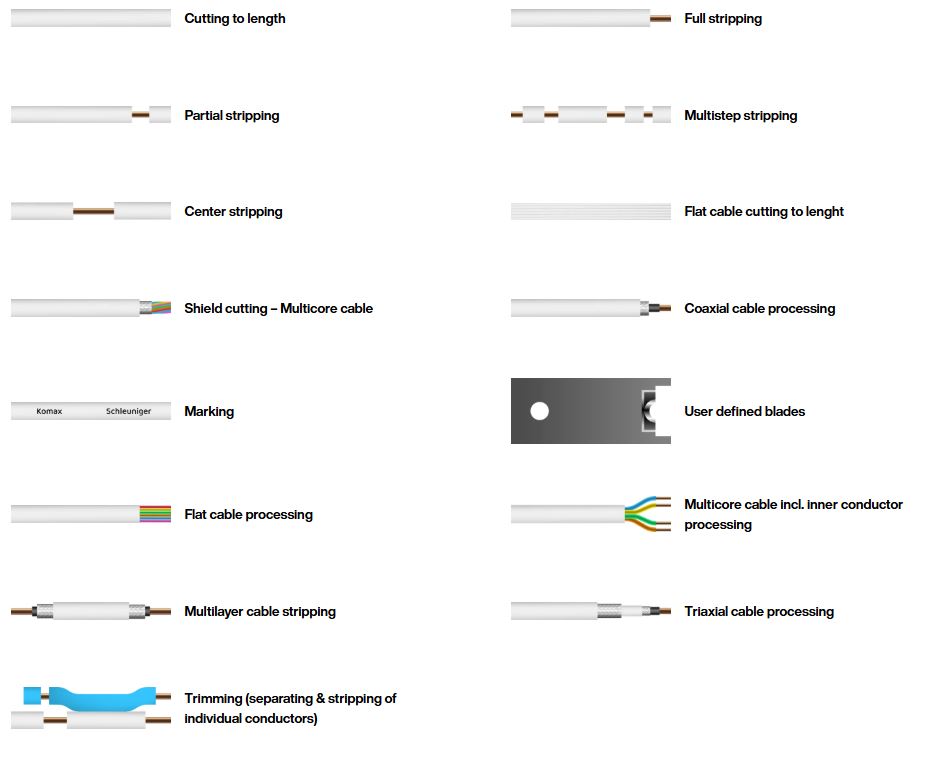

The entry-level cut and strip machine EcoStrip 9380 processes wires with a diameter of 0.3 mm – 8.0 mm (0.012″ – 0.31″) and a conductor cross-section of 0.05 – 8 mm² (36 – 8 AWG).
The EcoStrip 9380 is a capable entry-level machine for cut & strip applications that need to meet professional standards. It can process two wires in parallel and is compatible with a full range of pre- and post-processing accessories, transforming the standalone machine into a fully automatic processing line.It can be configured with rollers or belt feeding, and the configuration can be quickly and easily changed by the operator. The unique 3-position design of the optional belt-feeding system can run in normal, roller, or short mode processing, depending on the application.The EcoStrip 9380 is operated via a 5.7″ color touchscreen and the S.ON software, making handling easy.
