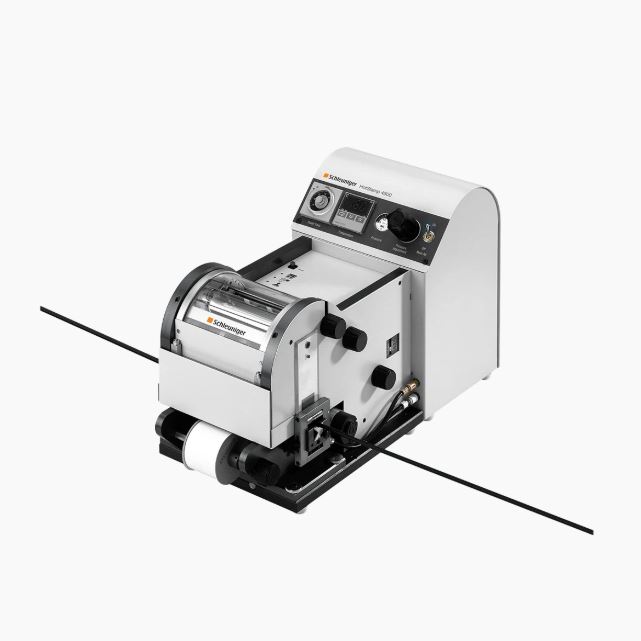

HotStamp 4500
The HotStamp 4500 marks wires and cables with a wide range of insulation, such as PVC, Teflon®, Tefzel®, cross-linked, SXL, and GXL, with an outer diameter of up to 15 mm (0.59″).
Its wide carriage enables the compact HotStamp 4500 to mark each end of the wire and cable with a different alphanumeric string up to 16 characters long. The large selection of character sizes and foils, along with a drawer for quick foil changeover, allows maximum flexibility in marking.Since both leading and trailing end marks are applied at the same time, it can also perform double continuous marking at set intervals for greater production rates. The HotStamp 4500 easily interfaces with any Schleuniger cut & strip machines or cutters. An optional foot pedal is also available for stand-alone operations.
Share this page
| Specification name | Specification value |
|---|---|
| Wire outer diameter min. | 1 mm |
| Wire outer diameter max. | 15 mm |
| Character height min. | 1.2 mm |
| Character height max. | 2.3 mm |
| Embossing temperature min. | 0 °C |
| Stamping temperature max. | 205 °C |
| Number of marking wheels | 38 |
| Marking foil | Types: Standard (general purpose); Teflon® (for Teflon®) 700K (for Cross-linked, SXL, GXL) Colors: Black, white (other colors upon request) Widths: 29 mm (1.1”) and 50 mm (2.0”) Foil usage per mark: 3 mm (0.12”) adjustable |
| Characters per wheel | 40 (uses same wheels as the HotStamp 4140) |
| Interfaces | HS/PF |
| Power supply input | Compressed Air: 6 bar (90 psi) Electrical: 120 / 230 Volts (50 / 60 Hz) 35 VA |
| Compressed-air connection | 6 bar |
| Weight | 26 kg |
| Dimensions/depth | 230 mm |
| Dimensions/width | 535 mm |
| Dimensions/height | 305 mm |
| Dimensions/length | 230 mm |
| CE conformity | The HotStamp 4140 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
