CM 1/5 GS
With the ferrule module CM 1/5 GS, up to five different ferrules on strap in different lengths can be processed with a Quadro crimp design.

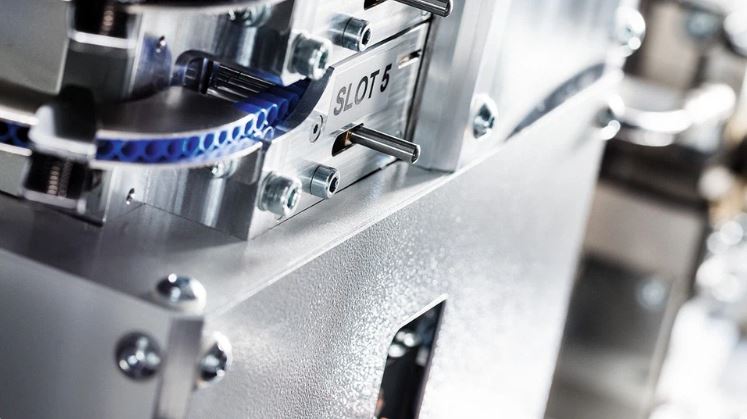

The ferrule module CM 1/5 GS saves you precious time. There is no need for time-consuming conversion, as the machine processes ferrules sequentially: ferrules on strap of 0.5 – 2.5 mm² cross-sections and in 8 and 10 mm lengths can be inserted in parallel and processed consecutively. High quality is ensured with simple setting modes on the touch display, the two-stage entry process and automatic wire centering. The innovative Quadro crimp design increases process reliability. The ferrule module CM 1/5 GS can be fully integrated into the Zeta series of Komax crimping machines.
Share this page
Fast and secure configuration
The articles and the processing on the module can be efficiently set up for automatic processing via the TopWin software.
Economical solution for ferrules on strap

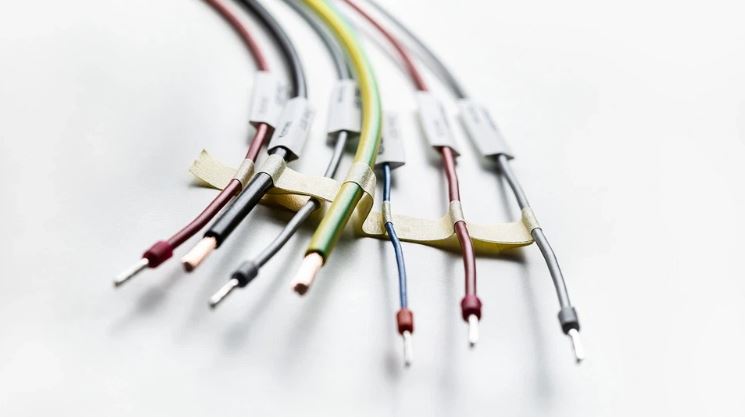

The CM 1/5 GS module offers a reliable and economical solution for the automated processing of ferrules on strap on stripped wires.
Full integration on Komax crimping machines
For automated wire processing, the ferrule module CM 1/5 GS can be seamlessly integrated into all Komax Zeta crimping machines.
| Specification name | Specification value |
|---|---|
| Wire cross section min. | 0.5 mm² |
| Wire cross section max. | 2.5 mm² |
| Operating pressure min. | 6 bar |
| Operating pressure max. | 6 bar |
| Weight | 26.5 kg |
| Dimensions without rollers / width | 260 mm |
| Dimensions without rollers / height | 490 mm |
| Dimensions without rollers / depth | 540 mm |
| Application | Use on Zeta series, tool-free roller change, 2-stage entry, freely selectable slot assignment |
| Crimp design | Quadro crimp design, DIN 46228 Part 4 |
| Min. sleeve length | 8 mm |
| Max. sleeve length | 10 mm |
| Ferrules | Z+F ferrules on rollers, 0.5 mm² – 2.5 mm² (AWG 20 – 14) Type: N, HL (standard)/S-N, S-HL (multinorm, AWG) |
