| CE conformity | The WireStacker 1000 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
|---|---|
| Raw material length | Up to 3,000 mm (120”), longer lengths possible but cable depending |
| Noise level | 75 dB |
| Height of wire outlet min. | 610 mm |
| Height of wire outlet max. | 1060 mm |
| Wire diameter max. | 25 mm |
| Compressed-air connection | 6 bar |
| Dimensions/length | 3000 mm |
| Dimensions/width | 470 mm |
| Dimensions/height | 1170 mm |
| Weight | 55 kg |
| Interfaces | 24 VDC – valve |

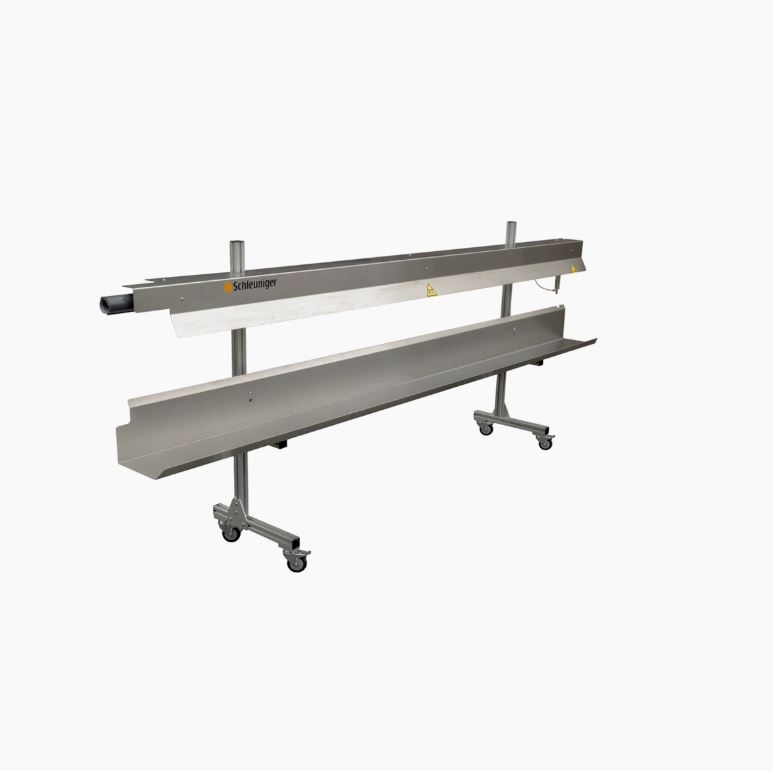

WireStacker 1000
The passive WireStacker 1000 includes a guide channel and a collecting tray for the stacked cables with lengths of up to 3 m (10 ft) and wire cross-sections of 0.34 mm² (22 AWG).
The passive WireStacker 1000 guides and collects short or long wires that have been processed with Schleuniger Cut & Strip machines. The machine greatly reduces the labor involved in handling long wires and works well in unattended operation with trouble-free cycles.For the stacking process, the wire is fed through the ejector pipe of the wire stacker by the machine’s transport rollers. After processing each wire, the machine sends a control signal to the wire stacker, causing it to drop the wire from the collection tube into the collection tray.
