| Wire size range (OD) | 1–7 mm (AWG 6–26) |
|---|---|
| Maximum stripping length | 200 mm (8 in) |
| Cycle start | Trigger-activated laser |
| Laser cut | Circular |
| Insulation material | PTFE, Polyimide, ETFE, X-ETFE, FEP, etc. |
| Interface | 3.5″ screen, USB, RJ45 |
| Ambient temperature | +15 °C to +35 °C |
| Humidity | <85%, not condensing |
| Noise level | <65 dB |
| Unit weight | 1.75 kg (3.9 lbs) |
| Control cord | 4 m (13 ft) |
| Electrical connection | 100–230 VAC / 50–60 Hz |
| Electrical consumption | <200 W |
| Laser security | Class 1 laser (open-workshop use) |
| Conformity | CE, FDA, FCC |
| Standard | EN2812, SAE AIR6894 |
Laser Stripping

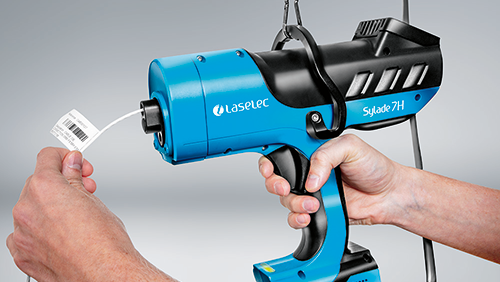

Sylade 7H Portable
THE HANDHELD SOLUTION FOR LASER WIRE STRIPPING
The newest technology for manual stripping of cable at harness production tables is the Sylade 7H handheld laser stripper. It’s compact, it’s lightweight and it’s portable!
High-precision semi-conductor lasers circle around the cable cutting the outer jacket to a depth and width with precision accuracy. Sylade 7H can handle a wide variety of cables. This handy device is easy to operate and can replace conventional tools.
Interested in the Sylade 7H Portable?
Talk to our team for pricing, availability and expert advice.
