| Wire outer diameter min. | 0.5 mm |
|---|---|
| Wire outer diameter max. | 7.8 mm |
| Strip length min. | 3 mm |
| Strip length max. | 115 mm |
| Insulation material | PTFE, Polyimide, ETFE, X-ETFE, FEP, Fiberglass, etc. PVC only with suitable filtering and suction system |
| Noise level | <75 dB |
| Electrical connection | 90–230 VAC / 50–60 Hz |
| Weight | 34 kg |
| Dimensions (L × W × H) | 167 × 470 × 560 mm |
| Ambient temperature | 15–35 °C |
| Processing outside the specifications | Processing outside the specifications upon request. In case of doubt, we will be happy to provide processing samples for your wires. |
| Laser | 20-watt infrared CO² laser |
| Laser cut type | Circular cut, axial slit, spiral strip, window |
| Laser security | Class 1 laser: can be used on open workshop (no laser safety goggles required) |
| Axial slit length | 65 mm |
| Insertion length (distance between entry point and laser cut) | Depending on the wire diameter |
Laser Stripping

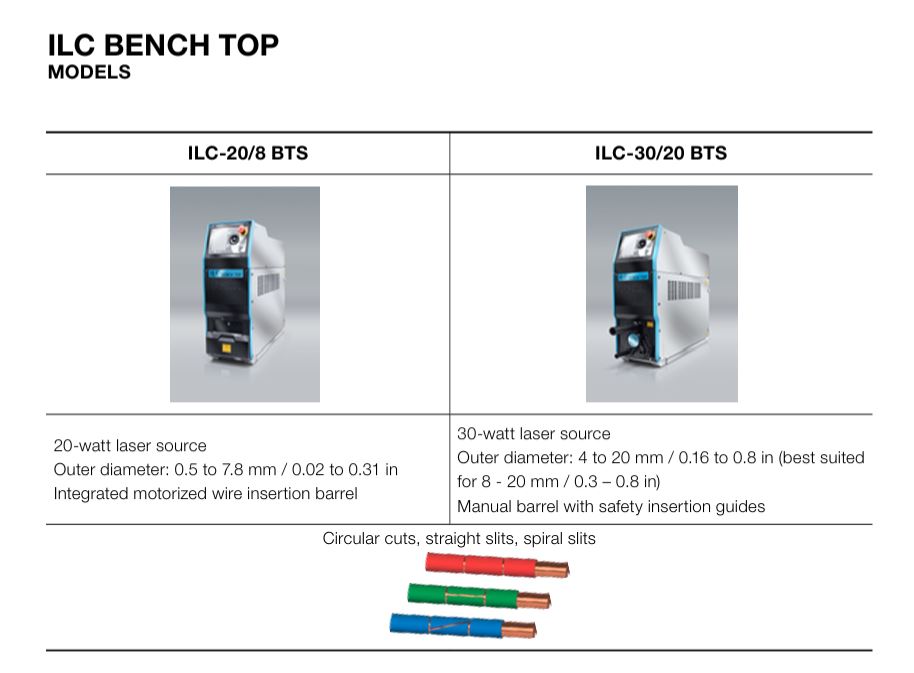

ILC Bench Top 20/8 BTS
The ILC Bench Top is a versatile stripping solution designed for high-demanding applications, complex wire and cable constructions, and out-of-round wires or cables.
The ILC Bench Top offers a high-accuracy laser rotary cutting head, ensuring precise cuts for various wire gauges while maintaining quality. With its programmed capabilities, wire changes are fast and simple, without requiring a wire holder. The ILC-20/8 BenchTop comes equipped with a 20-watt laser source, it handles wire outer diameters ranging from 0.5 to 7.8 mm (0.02 to 0.31 in) and performs circular cuts. It also offers straight slits and spiral slits.
