| Wire length/standard mode | 0.1 mm (0.004”) – 999‘999 mm (39,370“) |
|---|---|
| Wire outer diameter range | 0.0196 – 1 in |
| Interfaces | RS 232, foot pedal, standard prefeed and hotstamp Optional: PPI |
| Raw material diameter max. | 25 mm, tubes: 20 mm |
| CE conformity | The PowerCut 3700 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
| Feed rate | 4.5 m/s |
| Raw material width max. | 82 mm |
| Wire outer diameter min. | 0.5 mm |
| Wire cross section | 0.5 – 70 mm² |
| Wire length max. | 999999 mm |
| Wire outer diameter max. | 25 mm |
| Wire cross section min. | 0.5 mm² |
| Wire cross section max. | 70 mm² |
| Sequence processing (number of wires) | no |
| Length accuracy | Repetition accuracy: ± (0.2% + 1.0) |
| Drive system | Belt |
| Noise level | <70 dB |
| Electrical connection | 100VAC to 240VAC, 50/60Hz |
| Compressed-air connection | 6 bar |
| Air consumption | 10 l/min |
| Network connection | Yes |
| Recommended operating pressure | 6 bar |
| Weight | 65 kg |
| Dimensions/length | 640 mm |
| Dimensions/width | 440 mm |
| Dimensions/height | 530 mm |
| Processing outside the specifications | Processing outside the specifications upon request. In case of doubt, we will be happy to provide processing samples for your wires. |
PowerCut 3700

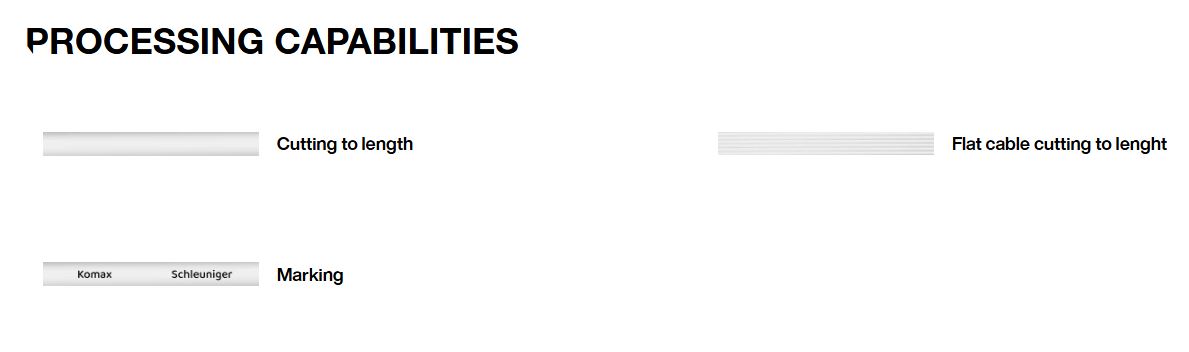

The PowerCut 3700 cuts large wire, round and flat cable, Glass Optical Fiber, tubing material and foil with cross-section up to 70 mm² (AWG 2/0) and diameter up to 25 mm (0.98″).
The PowerCut 3700 is the ideal solution for processing larger cable dimensions. It is a cutting machine designed for round and flat materials with larger cross sections, offering high accuracy and speed. The heavy-duty pneumatic cutter head achieves a clean, right-angled cut with short cycle times, ensuring high profitability through speed, accuracy, and repeatability.The rugged belt-feed transport unit, designed for high pull forces, along with the roller-guided cable inlet and universally adjustable cable guides, supports the processing of large wires. An automatic cable detection device adjusts gaps and detects cable ends.The PowerCut 3700 can be used as a stand-alone machine or in combination with various peripheral machines to create a fully automated cable processing line.
