| Raw Material Diameter | 0.5 mm – 16 mm (0.0196 – 0.63″) |
|---|---|
| Conductor Cross Section | 0.5 mm² – 70 mm² (26 – 2/0 AWG) – with optional cutter booster: up to 20% more cutting force (depending on cable) |
| Workpiece Length | Standard: 74 mm – 1,000,000 mm (2.91″ – 39,370″) With short-mode kit: 38 mm – 1,000,000 mm (1.49″ – 39,370″) With short-mode process: 0.1 mm – 74 mm (0.004″ – 2.91″) |
| Strip Length | 0.1 – 1,000,000 mm (0.004 – 39,370″) |
| Pull-Off Length | Left side: Max. 125 mm (4.92″) Right side: Max. 240 mm (9.44″) |
| SmartBlade Blade Cartridges | Number of blade sets: S/SR NA – M/MR 3 x 20 mm (0.79″) at blade width: S/SR 1 x 20 mm (0.79″) – M/MR 3 x 16 mm (0.63″) |
| Blade Type | 20 mm grid: V-blades, radius and die blades, multiradius blades, universal slitting unit and special blades 16 mm grid (only for M and MR versions): V-blades, radius and die blades, multiradius and special blades |
| Interfaces | Standard: 3 x USB, 2 x Ethernet as well as prefeed, hotstamp and postfeed interfaces Optional: 5 additional SMIs (Schleuniger Machine Interface) for up to 2 marking systems, different peripheral devices and emergency stop circuits |
| Power Supply | 200–240 VAC 50/60 Hz |
| Compressed Air Connection | 6–10 bar (87-145 psi) |
| Dimensions (L x W x H) | 1030 x 785 x 407 mm (40.55 x 30.90 x 16.02″) without freestanding panel |
| Weight | S: 129 kg (284.4 Ibs) SR: 145 kg (319.7 Ibs)M: 136 kg (299.8 Ibs) MR: 152 kg (335.1 Ibs) |
| Conformity | The PowerStrip 9580 complies with all relevant European directives and international standards (IEC and ISO). |
Cut & Strip
PowerStrip 9580

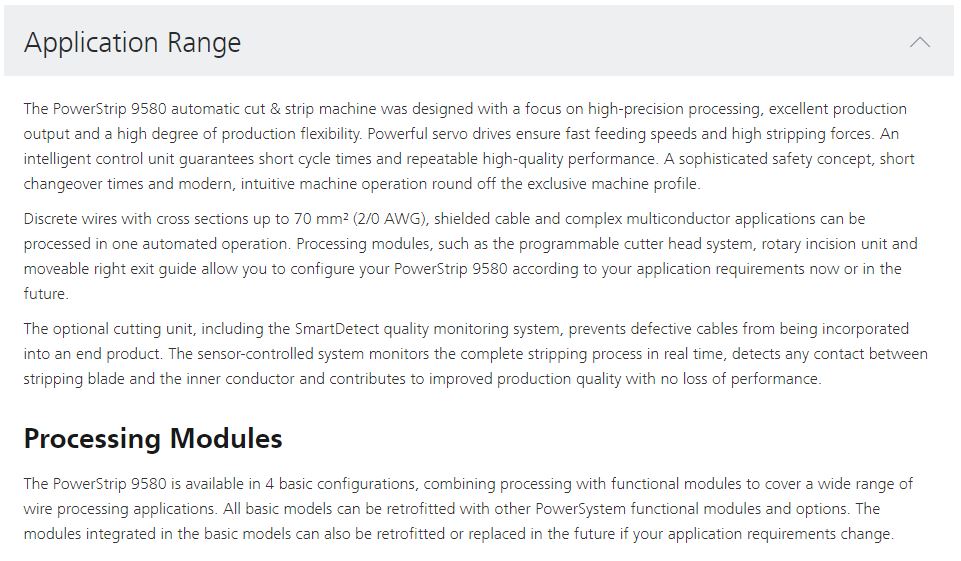

The PowerStrip 9580 processes a wide range of applications and impresses with its modular, flexible and retrofittable machine concept. Excellent production output with high-precision processing characterizes this automatic cut & strip machine.
- Innovative machine control for high productivity and process reliability
- SmartBlade system for quick changeovers of entire blade cartridge sets within seconds
- Simultaneous activation of multiple axes
- Powerful servomotors for high feed rates and pull-off forces
- Toolless guide changeovers
- Compatible with MES CAO via SMG Server and CAYMAN software
Options
Different options add processing capabilities to your PowerStrip 9580 or make working with the machine even easier. Examples are the universal slitting unit, different blade types, or the modular rack system for comfortable operation. The intelligent design with PowerSystem and SmartBlade guarantees maximum flexibility today and in the future.

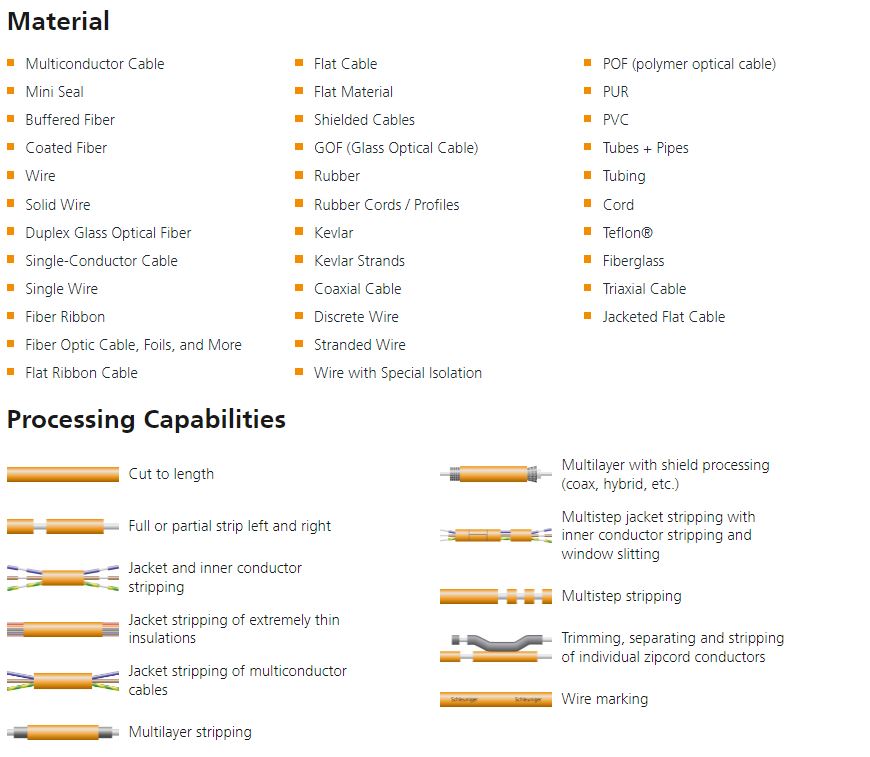

Programmable Processing Parameters
- Cutting and stripping with full and partial pull-offs, left and right
- Multistep jacket pull-offs
- Multistep stripping
- Jacket stripping of multiconductor cables
- Jacket stripping of extremely thin insulations
- Jacket and inner conductor stripping
- Trimming, separating and stripping
- Multistep jacket stripping with longitudinal slits and windows
- Multistep stripping of shielded cables (with or without shield
processing)
Models
- PowerStrip 9580 S with single-blade cutting unit
- PowerStrip 9580 M with flexible SmartBlade multiblade cutting unit
- PowerStrip 9580 SR with single-blade cutting unit and additional rotary cutting unit
- PowerStrip 9580 MR with flexible SmartBlade multiblade cutting unit and additional rotary cutting unit
