| Machine type | Benchtop machine |
|---|---|
| Screen diagonal | 112 mm |
| Current | Yes |
| Control box | integrated |
| Pneumatics | Yes |
| Width | 285 mm |
| Dimensions/height | 350 mm |
| Dimensions/depth | 485 mm |
| Total recommended space requirement (width x depth) | 500 x 1485 mm |
| Weight | 16 kg |
| Control voltage | 24 V |
| Fuse protection | 10 A |
| Connection power | 700 W |
| Electrical connection | 1×230V, 50/60Hz (range 180 – 250 V); 1×115V, 50/60Hz |
| Recommended operating pressure ±0.5bar/7.25psi | 6 bar |
| Lubricator | optional |
| Device interface (USB) | No |
| Network connection | No |
| MES capable | No |
| Air nozzle | optional |
| Carrier film coiler | optional |
| Tape end sensor | No |
| Pressure roller | optional |
| Tape width, min. | 9 mm |
| Tape width, max. | 50 mm |
| Tape dispensing length, min. | 30 mm |
| Tape dispensing length, max. | 9999 mm |
| Tape roller outer diameter, max. | 180 mm |
| Ambient temperature max. | 40 °C |
| Ambient temperature min. | 10 °C |
| Humidity, non-condensing | 5 – 95 % |

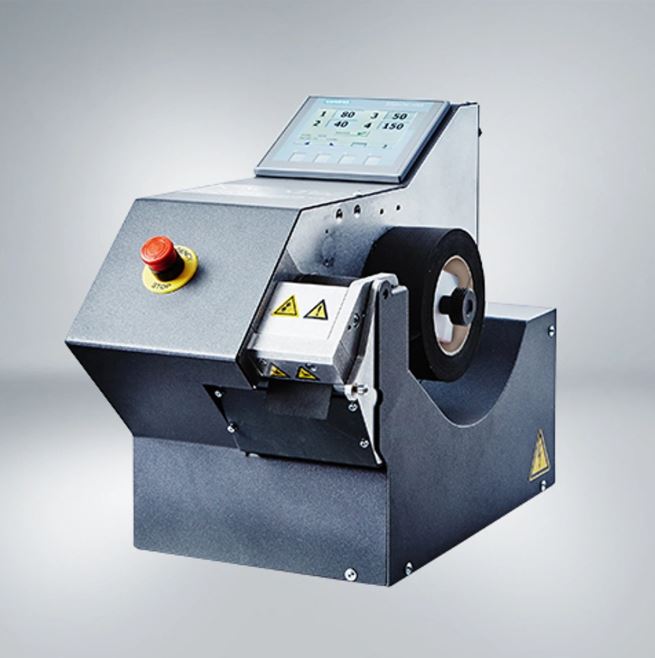

KTS 50-Comfort
The KTS Comfort series are ideal tape dispensers for almost all types of adhesive tape and are particularly suitable for processing a wide range of adhesive tapes from 9 – 50 mm wide.
The KTS 50 Comfort reliably dispenses thick or highly adhesive tapes that require high peel-off forces. Thanks to the individually adjustable and storable tape types – easy, normal or hard to pull off – the respective program is quickly accessed when changing the tape. The tape dispenser also stands out for its high level of flexibility: Up to 12 different sequences can be stored with user-defined tape lengths on the touch panel. The programmable tape length ranges from 30 to 9,999 millimeters. After the tape is pulled off, the corresponding lengths are output sequentially. The KTS Comfort series is sturdy and equipped with high-quality components, such as the low-maintenance shear blade, ensuring reliable performance.
The highest quality for industrial adhesive tapes
The KTS 50 Comfort is suitable for industrial tapes with high tape removal strengths. Due to the constant process, the quality is reproducible.
Individually adaptable
The KTS 50 Comfort offers storage capacity for up to twelve different lengths per level. The tape dispensing speed can be adjusted to the respective tape type.
Sturdy and low-maintenance
High-quality and proven components are installed in the KTS 50 Comfort. As an option, the KTS 50 Comfort is also equipped with an oiler.
Special removal device for carrier film
A liner take-up device is available for the KTS 50 Comfort model, specifically for processing adhesive tape with liner.
Interested in the KTS 50-Comfort?
Talk to our team for pricing, availability and expert advice.
