| Application | Taping of long cable sets with a multitude of long branches |
|---|---|
| Winding speed | 100 – 1000 rpm |
| Feed | 0 – 45 mm/rev, infinitely variable, program controlled |
| Programming | via industrial PC 19″ Touch, color |
| Tape-end detection | by optical sensor |
| Wire harness diameter | < 20 mm (optional: < 40 mm) |
| Tape width | 9 – 19 mm (on request < 25 mm) |
| Connection | 3L/N/PE 380 – 480 V AC/50 – 60Hz |
| Dimensions (H × W × D) | 1572 × 2156 × 950 mm (standard version) |
| Weight | approx. 550 kg |
Ideal for long winding distances
- Long main strands with many branches can be perfectly bandaged with the KTR 1800
- The linear system measures 750 mm or 1,500 mm and is therefore designed for long travels
- Up to 25 branches can be handled without problems with the KTR 1800
Precise and safe
- Innovative cutting system specially developed by KABATEC for high-voltage applications
- The highest quality cut-off knife is ideal for extremely resistant HV tapes
- The cutting system is well concealed in the changing table
Advantages in the production process
- Open winding head is perfect for flexible processing of long branches
- Extra large 15-inch display for visualization of the individual taping steps
- Freely positionable linear system
- Faster process times for highest efficiency
Taping

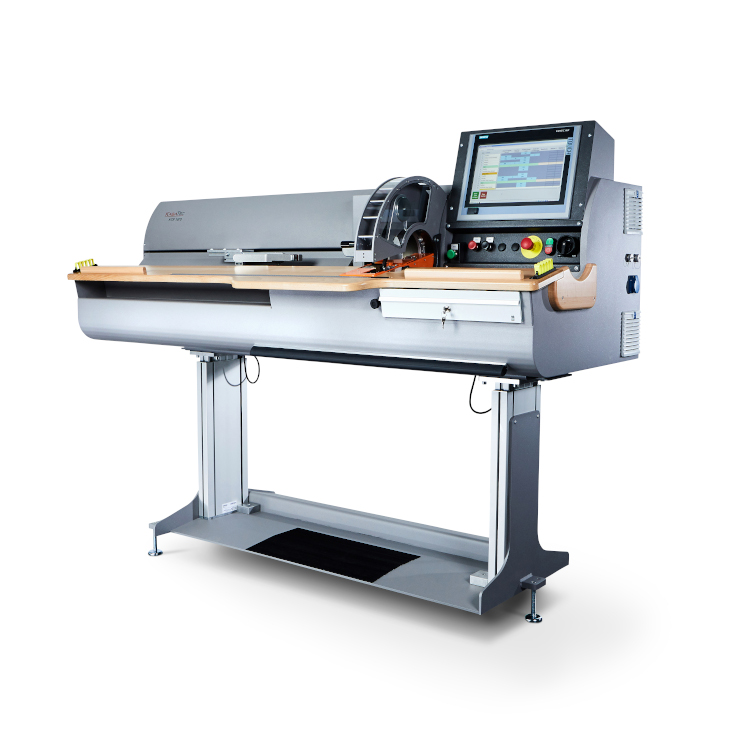

KTR 1800
Ideal for long lines
The KTR 1800 is perfectly designed for the processing of high-voltage lines (HV) and cable sets with large diameters.
