| Conductor cross section min. | 0.5 mm² |
|---|---|
| Conductor cross section max. | 8 mm² |
| Cycle time | 550 m/s |
| Strip length min. | 5 mm |
| Strip length max. | 38 mm |
| Raw material diameter max. | 10 mm |
| Electrical connection | 1 / N / PE AC 100-240 V; 50/60 Hz; 2 A; 75 W |
| Compressed-air connection | 5-8 bar |
| Total weight | 110 kg |
| Dimensions/length | 1200 mm |
| Dimensions/width | 710 mm |
| Dimensions/height | 1450 mm |

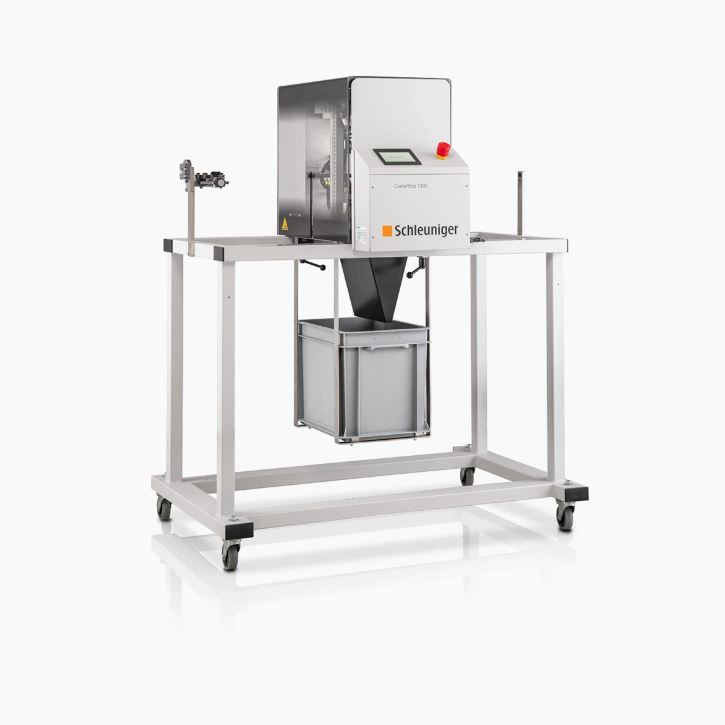

CenterStrip 1000
The CenterStrip 1000 precisely strips insulation windows from wires and multilayer cables ranging from 0.5 to 10 mm² (20 to 8 AWG) to a strip length of 5 to 38 mm (0.2 to 1.4″).
With short cycle times, simple operation, and quick changeover, the CenterStrip 1000 is easily integrated into automatic wire processing systems, such as fully automatic crimping machines or cut & strip machines. The CenterStrip 1000 completely removes insulation at programmed positions along the wire. Precise manufacturing of wire-specific blades prevents damage to conductor strands, and all common insulation types can be processed. The easy accessibility with a vertically raising safety cover makes this wire stripper an ergonomically usable and safe machine.
