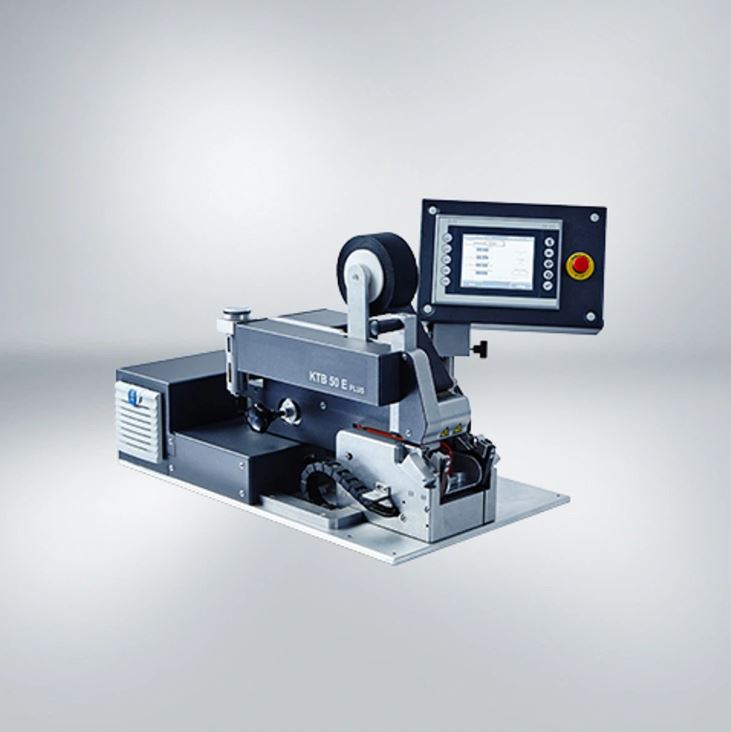

KTB 50 E Plus
“With its process time of 1.8 seconds, the KTB E PLUS semi-automatic spot taping system offers an efficient solution for everything to do with insulating, spot taping, fixing, marking, or labeling.”
The KTB E PLUS electric bundling machine has been continuously developed by Komax. The intelligent gripper fixture automatically detects the cross section of the inserted wire set and adjusts the required belt length, reducing setup time to a minimum during product changeovers. Individual process parameters can be set via the machine”s control panel, enabling flexible and efficient work. In manual mode, up to five different programs can be stored. Compared to manual insulation, the machine saves over 60% of the production time. The KTB E PLUS guarantees consistently high quality and is therefore the perfect solution for subcontractors producing wire harnesses for the automotive industry.
Share this page
| Specification name | Specification value |
|---|---|
| Machine type | Benchtop machine |
| Screen diagonal | 178 mm |
| Current | Yes |
| Control box | integrated |
| Pneumatics | Yes |
| Width | 400 mm |
| Dimensions/height | 475 mm |
| Dimensions/depth | 670 mm |
| Total recommended space requirement (width x depth) | 1400 x 1670 mm |
| Weight | 45 kg |
| Control voltage | 24 V |
| Fuse protection | 16 A |
| Connection power | 1200 W |
| Electrical connection | 1×230V, 50/60Hz (range 180 – 250 V); 1×115V, 50/60Hz |
| Recommended operating pressure ±0.5bar/7.25psi | 6 bar |
| Number of tape layers/bundling, min. | 2 |
| Number of tape layers/bundling, max. | 3 |
| Bundle diameter, min. | 2 mm |
| Bundle diameter, max. | 13 mm |
| Adjustable gripper force | No |
| Transverse tension | Yes |
| Adjustable transverse tension | No |
| Diameter detection | Yes |
| Integration into welding table | No |
| Device interface (USB) | Yes |
| Network connection | Yes |
| MES capable | No |
| Tape end sensor | optional |
| Ejector | optional |
| Input for barcode scanner | No |
| Oiler (for the blade) | Yes |
| Positioning limit stop | No |
| Tape pull-off support | optional |
| Tape pull-off | Yes |
| Tape width, min. | 9 mm |
| Tape width, max. | KTB 19 E Plus: 19 mmKTB 38 E Plus: 38 mmKTB 50 E Plus: 50 mm |
| Tape detection sensor | No |
| Tape roller outer diameter, max. | 180 mm |
| Ambient temperature max. | 40 °C |
| Ambient temperature min. | 10 °C |
| Humidity, non-condensing | 5 – 95 % |
YOUR BENEFITS
Time savings thanks to short cycle times
- Up to 50 % less processing time compared to manual production
- Simple handling through automated process steps
- Thanks to automatic diameter detection, the required tape length is always guaranteed
Highest quality and process security
- Reproducible quality
- Automatic detection of diameter reduces operator involvement
- Efficient processing of critical cable cross-sections
- Automatic display of maintenance intervals
- Tape is cut with a self-cleaning, low-wear cutting blade
Tape is cut with a self-cleaning, low-wear cutting blade
- Up to 80 % lower material costs compared to heat-shrink tubing or caps
- Calculable tape consumption thanks to programmable number of windings
