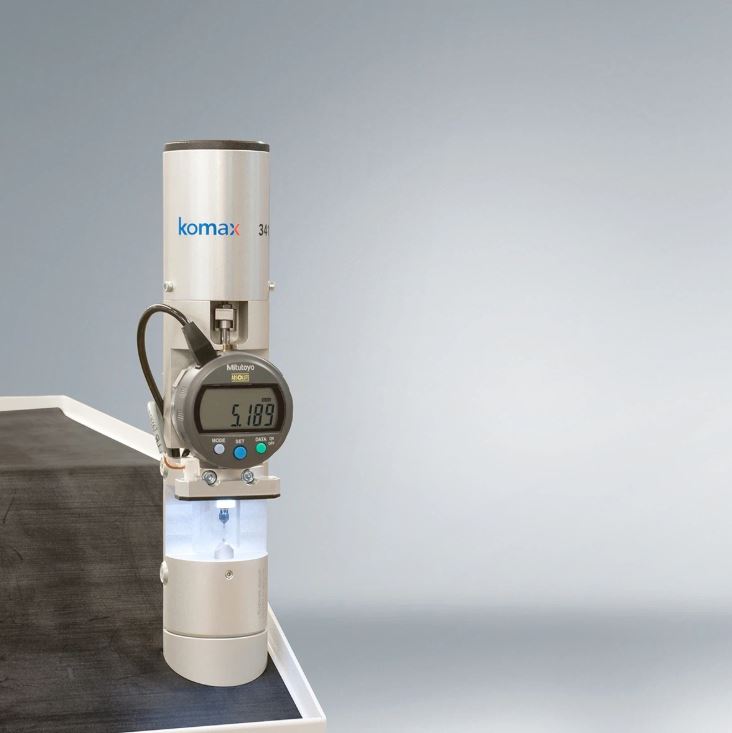

The Komax 341 crimp height measurement device measures terminals up to a height of 8 mm and compares them with the target crimp height. If there is no match, production will not start.

The measurement device ensures quality even before production: The crimp height is measured before the start, transmitted to the base machine and compared with the setpoint. If the values do not match or if the measurement is not performed, production cannot be started. This prevents incorrect processing. The Komax 341 crimp height measurement device perfectly complements the mci 721/722 and C1370 crimp modules with integrated crimp height adjustment: Based on the measured value, the correction to achieve the target crimp height is calculated. The crimp modules then automatically correct the height; there is no need to adjust the crimp height by hand. This means that the changeover and downtime of the machine can be significantly reduced.
