Girar 300
With a processing time of 1.4 seconds, the Girar 300 semi-automatic bundling machine offers an efficient solution for insulating, bundling, fixing, marking or labelling.

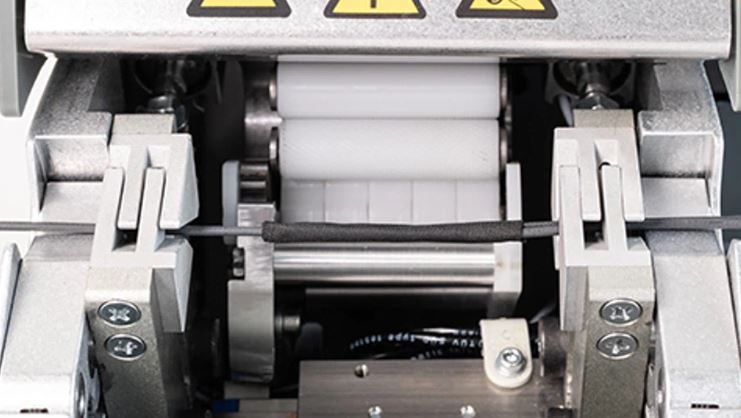

The Girar 300 series machines stands for high efficiency and maximum quality in bundling and marking in wire production.The intelligent gripper unit of the Girar 300 detects the inserted cross-section and calculates the required adhesive tape length with millimetre precision. Diameters of up to 17 mm can be easily processed.The adhesive tape is cut with a self-cleaning scissor blade. In addition, maintenance intervals are automatically displayed to ensure optimal operating times. Compared to manual insulation, the machine saves over 80% of production time.
Efficient Bundling
With a process time of 1.4 seconds, the Girar 300 sets new standards in cost-effectiveness, process time but also in terms of space requirements, energy consumption and ergonomics.

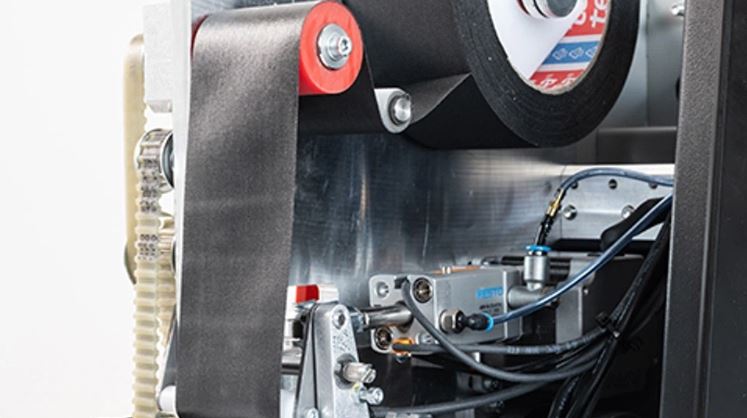

Perfect Tape Guiding
Tape detection, tape end detection, pull-off aid or air nozzle, our options are as diverse as your requirements. Feel free to contact us. We will find a solution.

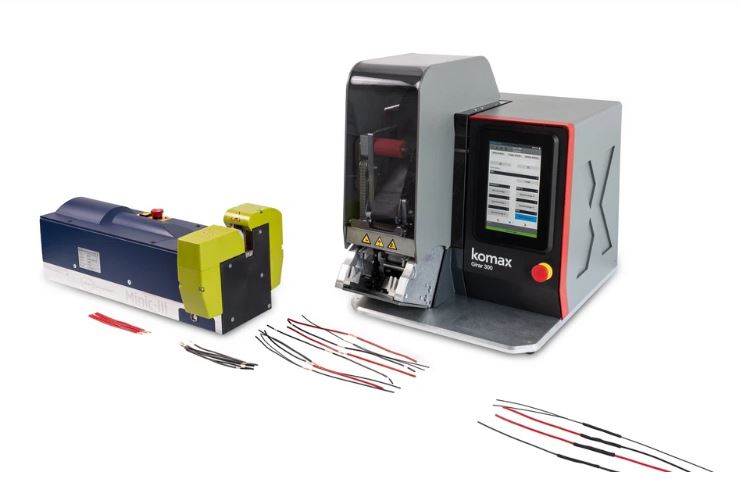

Connected to MES System and Other Process Modules
The Girar 300 can optionally be connected to a welding module. This increases process reliability. A connection to your MES system is also provided.
High Volumes in Item Handling and Job Management

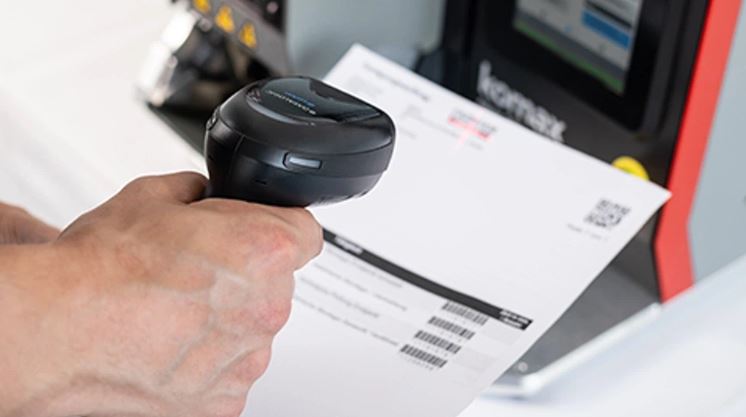

Storage for up to 1,000 items and integrated job management enable particularly efficient item handling. Item selection via barcode scanner speeds up the workflow.

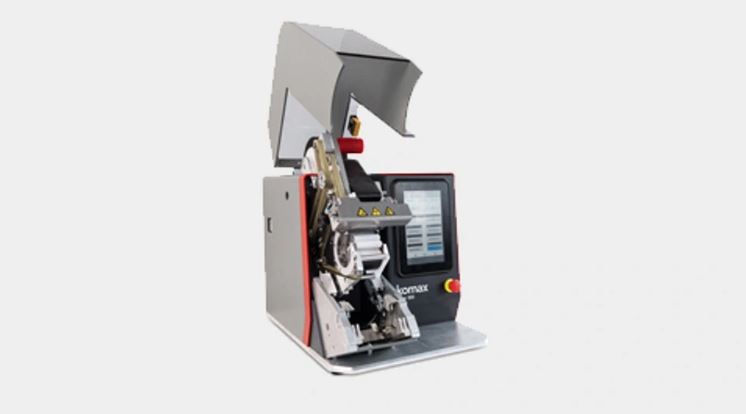

Low Maintenance Requirements
A display showing maintenance intervals, an automatic knife oiling system with oil level sensor and a maintenance position for the bundling unit ensure high machine availability.
Share this page
| Specification name | Specification value |
|---|---|
| Application | Spot taping, bundling, insulating, marking and labeling of different tapes (also suitable for very small diameters) |
| Screen diagonal | 178 mm |
| Current | Yes |
| Control box | Integrated |
| Pneumatics | Yes |
| Width | 354 mm |
| Dimensions/height | 440 mm |
| Dimensions/depth | 492 mm |
| Total recommended space requirement (width x depth) | 700 x 1450 mm |
| Weight | 26 kg |
| Control voltage | 24/48 V |
| Fuse protection | 16 A |
| Connection power | 600 W |
| Electrical connection | L/N/PE 100-240V AC 50-60HZ ±10% |
| Recommended operating pressure ±0.5bar/7.25psi | 6 bar |
| Number of tape layers/bundling, min. | 2 |
| Number of tape layers/bundling, max. | 6 |
| Bundle diameter, min. | 1 mm |
| Bundle diameter, max. | 17 mm |
| Adjustable gripper force | Yes |
| Transverse tension | Yes |
| Adjustable transverse tension | No |
| Diameter detection | Yes |
| Integration into welding table | Yes |
| Device interface (USB) | Yes |
| Network connection | Yes |
| MES capable | Yes |
| Air nozzle | optional |
| Tape end sensor | optional |
| Pressure roller | No |
| Ejector | No |
| Input for barcode scanner | Yes |
| Oiler (for the blade) | Yes |
| Positioning limit stop | No |
| Tape pull-off support | optional |
| Tape pull-off | No |
| Tape width, min. | 9 mm |
| Tape width, max. | 50 mm |
| Tape detection sensor | optional |
| Tape roller outer diameter, max. | 180 mm |
| Ambient temperature max. | 40 °C |
| Ambient temperature min. | 10 °C |
| Humidity, non-condensing | 5-95 % |
