| Wire outer diameter | 0.25 – 9 mm |
|---|---|
| Wire cross section | 0.03 – 16 mm² |
| Strip length | 0.1 – 80 mm |
| Increment of strip length | 0.1 mm |
| Pull-off length | 0.1 – 40 mm |
| Break-out length min. | 21 mm |
| Insulation material | PVC, PUR, rubber, Teflon, Tefzel, Kapton, etc. |
| Blade | 2 blades linear, horizontal, special blades |
| Incision diameter increment | 0.01 mm |
| Gripping force | programmable |
| Piece output max. | 2500 pcs/h |
| Noise level | 59 dB |
| Electrical connection | 100/115 VAC: fuse 2.0 A/T, 230/240 VAC: fuse 1.0 A/T, 50/60 Hz, 100 VA |
| Weight | 12 kg |
| Dimensions (L × W × H) | 500 × 140 × 235 mm |
| Temperature operation | 5 – 40 °C |
| Cycle time | 0.6 sec |
| Article library | 1,000 cables |
| Data interface | RS 232, foot pedal, robotic interface (option) |
| User interface | Monochrome display |
| Trigger | Automatic trigger sensor or optional foot pedal |
| Options | Iquana™ software, SmartStrip™ technology, air jet, foot pedal, special blades & clamping |
| CE conformity | Fully complies with all CE and EMC equipment guidelines for mechanical and electrical safety and electromagnetic compatibility. |

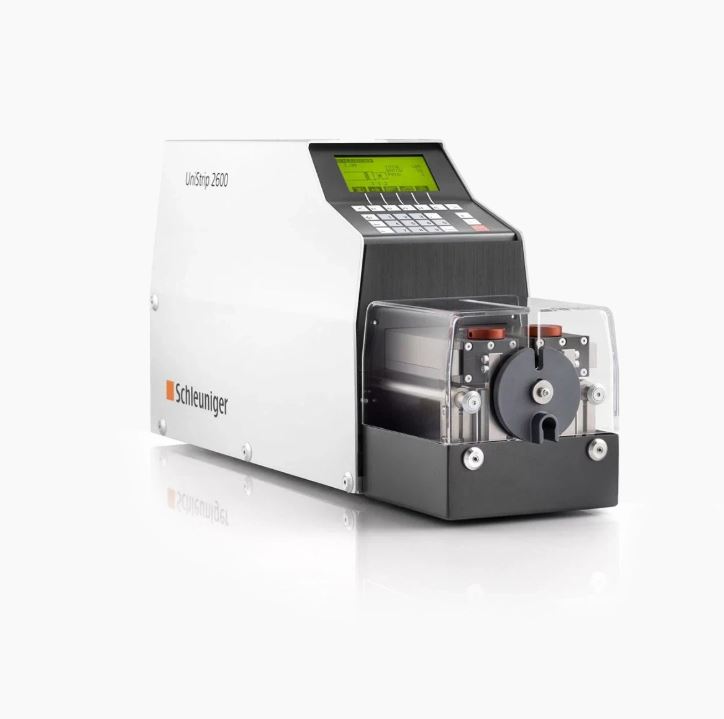

UniStrip 2600

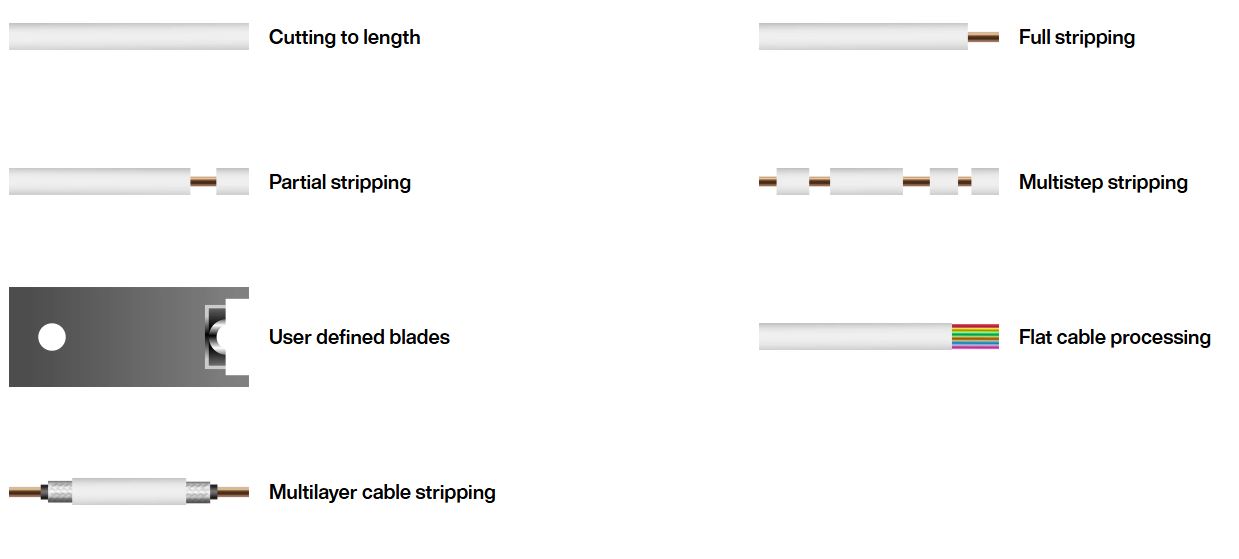

The UniStrip 2600 strips a wide variety of wire and cable types, including discrete wire from 0.03 – 16 mm² (32 – 6 AWG), power cords, multiconductor cables, flat cables, etc.
The UniStrip 2600 is one of the most flexible stripping machines on the market, designed for a wide range of applications with stripping lengths up to 80 mm (3.14″) and a maximum pull-off length of 40 mm (1.57″). It handles unique applications and multiple conductors in a single cycle. The machine features powerful, quiet drives and fast cycle times, and it is fully programmable with up to 1,000 memory locations. With the optional SmartStrip™ function, the UniStrip 2600 minimizes operator errors. Loading different programs between jobs becomes unnecessary, as SmartStrip™ automatically detects wire diameter and processes it according to preprogrammed parameters. The stripping head is easy to change and compatible with various blade types.
