| User levels | 3 |
|---|---|
| Feed type | Left-to-RightRear Feed |
| System feedback / diagnostics | Strip Head Motors, Bad Piece Cutter,Carrier Strip Chopper,etc. |
| Activation | Trigger Sensor or Foot Pedal |
| Strip length min. | 0.5 mm |
| Strip length max. | 15 mm |
| Dismantling length min. | 32 mm |
| Stroke min. | 40 mm |
| Stroke max. | 40 mm |
| Shut height, standard | 135.78 mm |
| Wire outer diameter max. | 6.3 mm |
| Wire cross section min. | 0.05 mm² |
| Wire cross section max. | 6 mm² |
| Noise level | <70 dB |
| Electrical connection | 230 V AC, optional 115 V AC, 50/60 Hz |
| Compressed-air connection for options | 6 bar |
| Weight | 95 kg |
| Length | 340 mm |
| Width | 330 mm |
| Height | 765 mm |
| Cut conductors (BCC) max. | 4 mm² |
StripCrimp 208
The stripping and crimping machine StripCrimp 208 strips to a length of 0.5 – 15 mm (0.02 – 0.59″) and crimps wires from 0.05 – 6 mm² (30 – 10 AWG) with 33 kN (3.3 tons) of force.

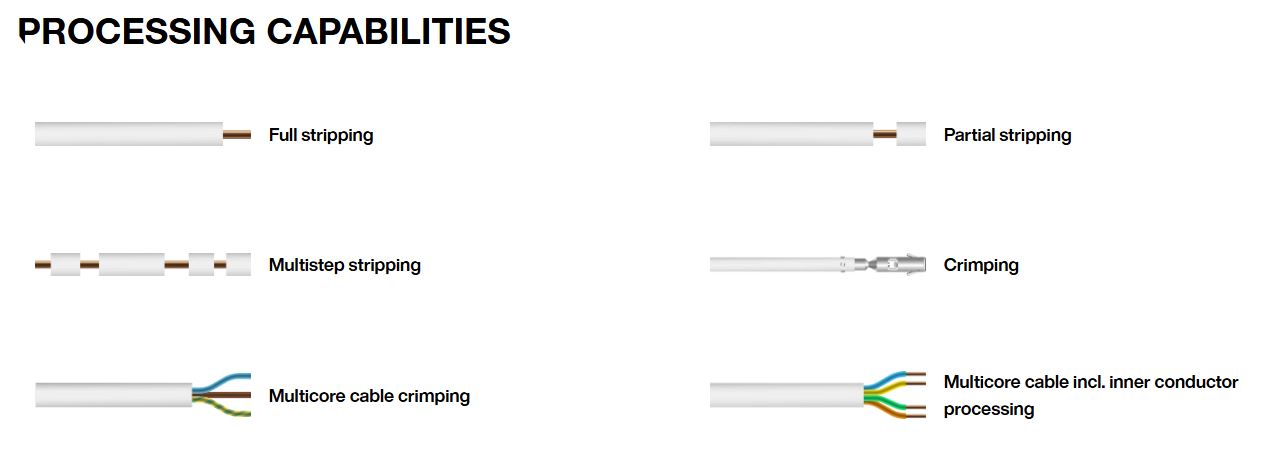

The StripCrimp 208 combines stripping and crimping for standard wires. With short breakout lengths ranging from 26 mm (1.02″) down to 14 mm (0.55″), it can handle sensor applications and multi-conductor cables.This versatile machine supports a quick-change system for all standard rear- and side-feed applicator tools, making it suitable for various applications. The cable clamp holds cables precisely in position, ensuring consistent quality, while the ergonomic design simplifies cable insertion.Programmable processing parameters allow precise adjustments for cable cross-section, stripping, crimp contact, and crimping settings, ensuring repeatable results. Optional crimp force monitoring and a bad-piece cutter further enhance quality control.
