| Wire outer diameter | 0.2 – 4 mm |
|---|---|
| Wire cross section | 0.03 – 3.31 mm² |
| Insertion depth (standard grippers) min. | 14 mm |
| Insertion depth (thin grippers) min. | 6.6 mm |
| Article library | none |
| Strip length | 1.5 – 25 mm |
| Pull-off length | 1.5 – 20 mm |
| Break-out length min. | 14 mm |
| Insulation material | PVC, PUR, rubber, Tefzel, Kapton, etc. |
| Blade | 2 blades linear, V-shape |
| Incision diameter increment | 0.01 mm |
| Gripping force | mechanical |
| Electrical connection | 100 – 240 VAC, 50/60 Hz |
| Compressed-air connection | 4–6 bar |
| Compressed-air quality | Dry, filtered (10 µm), oil-free |
| Weight | 4.5 kg |
| Dimensions (L × W × H) | 352 × 79 × 169 mm |
| Temperature operation | 10 – 40 °C |
| Processing outside the specifications | Processing outside the specifications upon request. In case of doubt, we will be happy to provide processing samples for your wires. |
| Cycle time | 0.4 sec (for 10 mm strip length) |
| Data interface | Foot pedal |
| User interface | Rotary knobs + cutting-diameter display |
| Trigger | Automatic trigger sensor, foot pedal |
| Options | Foot pedal, short breakout-length kit, diamond clamping jaws – narrow and normal |
| CE Conformity | The B200 fully complies with the CE and EMC machinery directives relating to mechanical and electrical safety and electromagnetic compatibility, as well as UKCA, UL, and CSA. |
Strip Series B200
The Strip Series B200 is the ideal entry-level machine for simple cable stripping applications. It automatically strips standard cables up to 4 mm (0.16 in) in diameter and 25 mm (0.98 in) in length.

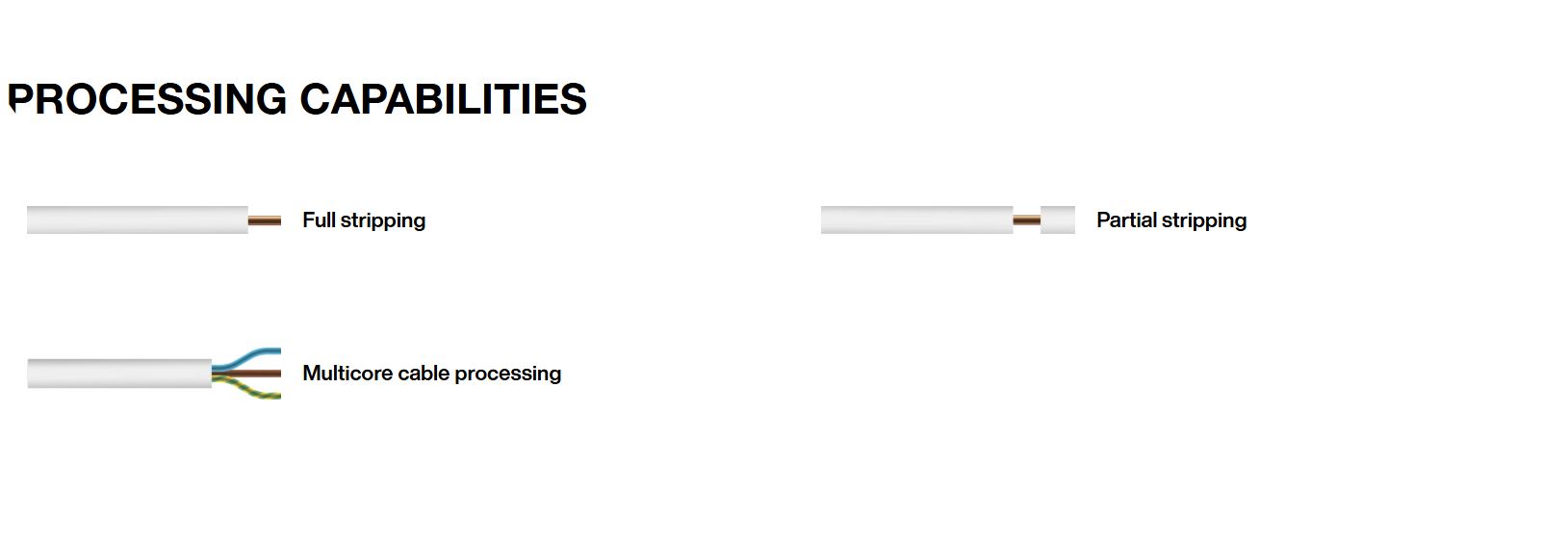

The Strip Series B200 performs both full and partial cable stripping with a minimum insertion depth of 14 mm (0.55 in). With optional thin grippers, insertion depths as low as 11 mm (0.43 in) are possible. All parameters can be precisely adjusted manually via rotary knobs. It processes PVC, PE, and PP cables, including cables for miniaturized housings and applications with minimal spacing between the jacket and the crimp. The B200 combines quality, durability, user-friendly operation, and mobility. Its precise mechanics and high-speed motors ensure short cycle times, high output, and repeatable accuracy.
The B200 strips wires and standard cables up to 4 mm in diameter and 25 mm in length in just 0.4 seconds, significantly increasing your productivity.
Ultra-fast wire stripping in just 0.4 seconds
Lightweight design with only 4.5 kilograms
With a weight of only 4.5 kilograms, the B200 is easy to carry and ideal for mobile use – making it the perfect portable solution for flexible workstations.
Simple and intuitive handling for fast change over
The intuitive controls make the B200 easy to use. The semi-automatic machine is operated via rotary knobs and allows for quick, efficient handling.
Flexible use with any standard power socket
The B200 works with any standard power socket, eliminating the need for special setups and offering maximum flexibility in any workspace.
Ergonomic activation via sensor or foot switch
This wire stripper can be activated using either a sensor or a foot switch, allowing for hands-free and ergonomic operation. This makes the B200 quick and easy to use.
