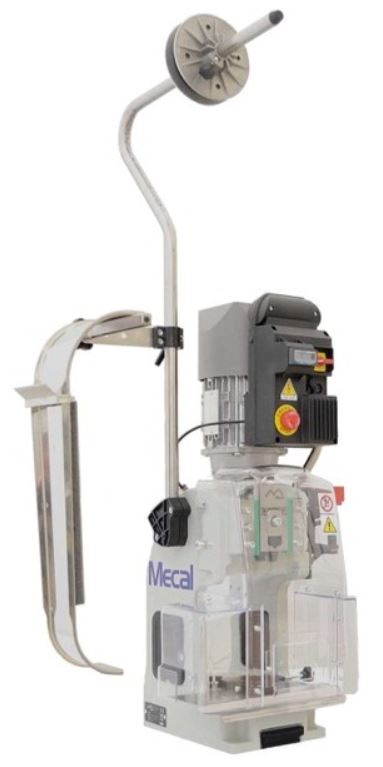

Mecal TT

The Mecal TT crimping press is available either in semi-automatic (for bench-top use) configuration or in full automatic (integrated into a cut and strip machine) configuration. Very compact and light, its spheroidal cast iron, one piece structure offers the highest rigidity for a very stable crimping height values. The standard stroke is 40mm, but other different strokes are available upon request. The 135.8mm +/- 0.02 crimping height (measured from the applicator base plate to the press T coupling when at bottom dead centre) allows the TT to accept all the mini-style applicators fitted with the standard T coupling. Upon request, a crimping height continuous emulating system (“TAC TAC”) can be supplied. A proprietary safety cover grants the operator a perfect view of the crimping son while enjoying complete protection from any hazard. Mecal’s own crimp force analyser can be fitted as an option.
