| Application | Taping of simple, short cable sets with up to 4 branches |
|---|---|
| Tape material | Vielzahl an automotiven und industriellen Klebebänder (optional: Doppelbandage mit nicht klebendem Aluminiumband) |
| Tape width | 9 – 19 mm (on request <25 mm=”” p=””> |
| Tape outer diameter | Up to 180 mm |
| Tape core diameter | 1.5″ and 3″ |
| Rotational speed | 100 – 1,000 rpm, programmable |
| Winding head | Closed, placed automatically in tape attachment position |
| Feed rate | 0 – 70 mm/rotation, programmable, linear feed |
| Cable harness diameter | < 20 mm (Optional: < 40 mm) |
| Connection | L/N/PE 210 – 240V AC/50-60Hz +-10% (optional:L/N/PE 100 – 120V AC/50-60Hz +-10%) |
| Dimensions (H × W × D) | 645 mm x 1536 mm x 832 mm |
| Weight | 200 kg |
Taping

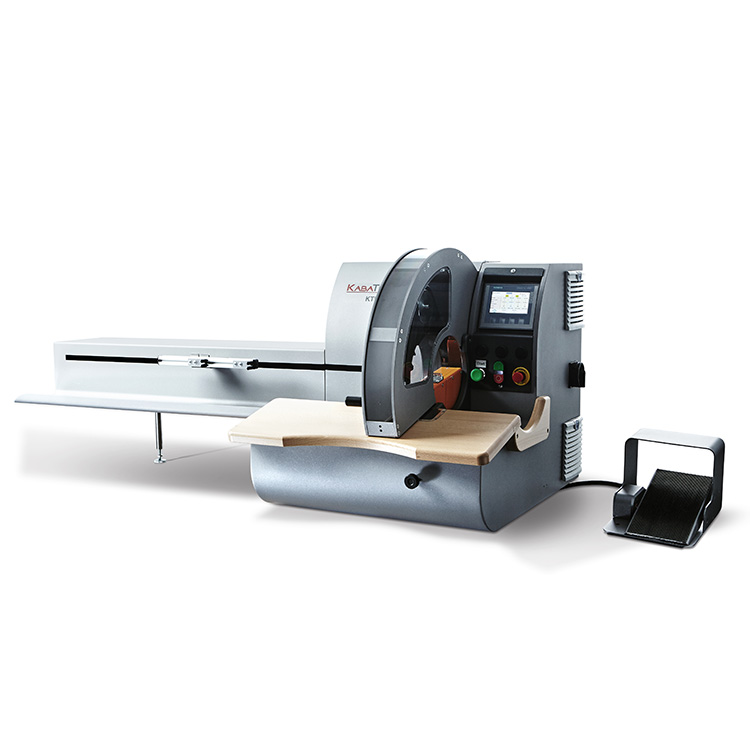

KTL 10
Compact, program-controlled taping machine
The KTL 10 program-guided taping machine is ideally suited to the taping of cable harnesses and small modules with a maximum tape length of 1,000 mm.
YOUR BENEFITSAttractive introduction to program-controlled taping
- Excellent value for money
- Simple operation and low training requirements
- Compact, low-maintenance and reliable machine design
High process precision
- Millimeter-precise length measurement thanks to linear feed
- Reproducible taping quality through program control
- Consistent tape tension and tape guidance guarantees wrinkle-free taping compared to manual processes
- Control of the winding head speed via foot pedal possible
