| Machine type | Benchtop machine |
|---|---|
| Screen diagonal | 112 mm |
| Current | Yes |
| Control box | External |
| Pneumatics | Yes |
| Width | 246 mm |
| Dimensions/height | 257 mm |
| Dimensions/depth | 565 mm |
| Control box width | 300 mm |
| Control box height | 304 mm |
| Control box depth | 216 mm |
| Total recommended space requirement (width x depth) | 500 x 1780 mm |
| Weight | 30 kg |
| Control voltage | 24 V |
| Fuse protection | 16 A |
| Connection power | 120 W |
| Electrical connection | 1×230V, 50/60Hz (range 180 – 250 V); 1×115V, 50/60Hz |
| Recommended operating pressure ±0.5bar/7.25psi | 6 bar |
| Number of tape layers/bundling, min. | einstellbar über Bandlänge |
| Number of tape layers/bundling, max. | einstellbar über Bandlänge |
| Bundle diameter, min. | 2 mm |
| Bundle diameter, max. | 11 mm |
| Adjustable gripper force | No |
| Transverse tension | Yes |
| Adjustable transverse tension | No |
| Diameter detection | No |
| Integration into welding table | No |
| Device interface (USB) | Yes |
| Network connection | Yes |
| MES capable | No |
| Tape end sensor | No |
| Ejector | No |
| Input for barcode scanner | No |
| Oiler (for the blade) | No |
| Positioning limit stop | Yes |
| Tape pull-off support | No |
| Tape pull-off | Yes |
| Taping diameter, max. | 150 mm |
| Tape width, min. | 9 mm |
| Tape width, max. | 19 mm |
| Tape detection sensor | No |
| Ambient temperature max. | 40 °C |
| Ambient temperature min. | 10 °C |
| Humidity, non-condensing | 5 – 95 % |

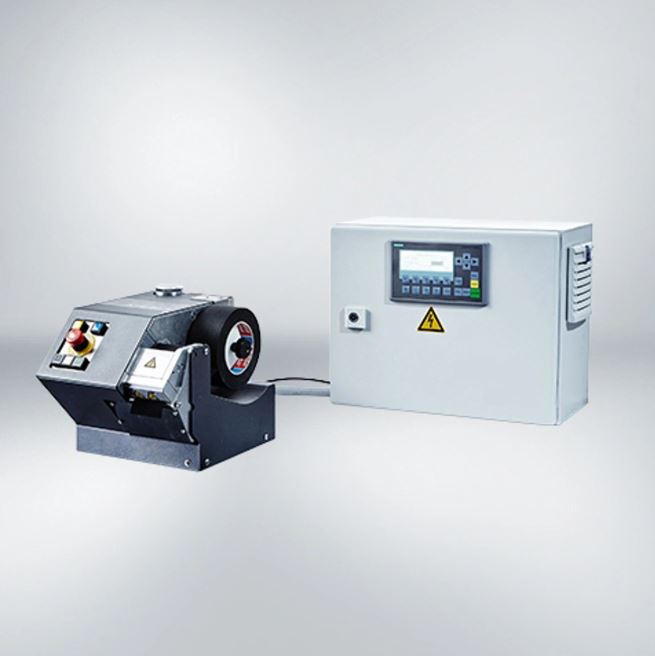

KTB E9/19P BenchTop
The KTB E9P and KTB E19P crimper automatic bundling machines can be easily integrated into production and assembly lines, including horizontally, vertically, or at an angle, thanks to the compact, special design.
The KTB E9P/E19P V2 features a low process time of only 1.8 seconds, reducing production time by 60% compared to manual spot taping. The intelligent tape extrusion system enables tension-free processing of the adhesive tape. The KTB E9P/E19P crimper is also available as a complete system. It can be purchased together with a robot or on an X-Y-Z traverse. Thanks to its special functionality, it can be used in any installation position. Even short sections can be bundled reliably with a bundling head width of only 34 mm. As a result, the KTB E9P/E19P crimping machines ensure consistently high quality and are the ideal solution for subcontractors producing wire harnesses for the automotive industry.
Maximum flexibility when installing and assembling
The KTB E9P/E19P V2 automatic bundling machines are universal machines that can be easily integrated into production and assembly lines thanks to their slim design.
KTB E9P/E19P quality advantages
High level of vertical integration: The durable blades were specially developed by Komax and are manufactured in Burghaun, Germany.
Low maintenance frequency
For maintenance purposes, the unit can be replaced in just a few steps thanks to the quick-release mechanism. This means downtime is reduced to a minimum.
Also available as a complete system
We are happy to offer you the automatic bundling machine as a complete system with a robot or on an X-Y-Z traverse.
