| Inner conductor diameter max. | 0.07 mm |
|---|---|
| Wire outer diameter max. | 1.8 mm |
| Wire cross section | 0.0025 – 2.08 mm² |
| Strip length max. | 29 mm |
| Increment of strip length | 0.01 mm |
| Break-out length min. | 19 mm |
| Blade | 4 blades, rotative |
| Layer count | 9 |
| Incision diameter increment | 0.01 mm |
| Gripping force | programmable |
| Piece output max. | 650 pcs/h |
| Noise level | <70 dB |
| Electrical connection | 100 / 240 VAC: fuse 3.15 A/T, 50/60 Hz |
| Compressed-air connection | 4–6 bar |
| Compressed-air quality | Dry, filtered (10 µm), oil-free |
| Weight | 20 kg |
| Dimensions (L × W × H) | 494 × 140 × 218 mm |
| Temperature operation | 5 – 40 °C |
| Processing outside the specifications | Processing outside the specifications upon request. In case of doubt, we will be happy to provide processing samples for your wires. |
| Cycle time | 3.5 sec |
| Cycle time depending on | depending on cross-section, strip length and pull-off length |
| Article library | 1,000 cables |
| Data interface | RS 232, foot pedal |
| User interface | Monochrome display |
| Trigger | Sensor or foot pedal |
| Options | External emergency stop, centering 2-blade system, cable-specific gripper jaws, foot pedal |
| CE conformity | Fully complies with all CE and EMC equipment guidelines for mechanical and electrical safety and electromagnetic compatibility. |

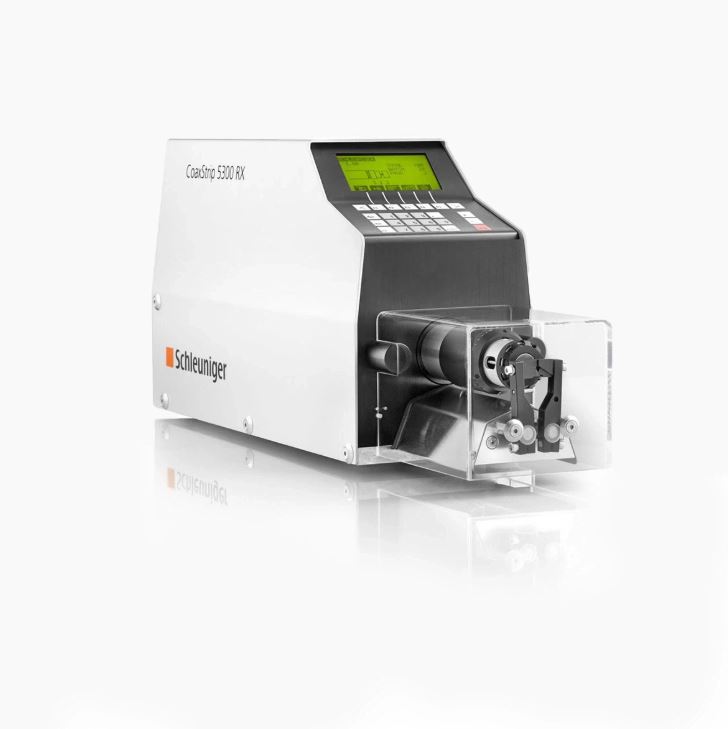

CoaxStrip 5300 RX
The CoaxStrip 5300 RX strips wires and cables with conductors ranging from 0.07 mm (0.003″) to 2 mm (0.079″) in outer diameter, with a maximum stripping length of 29 mm (1.14″).

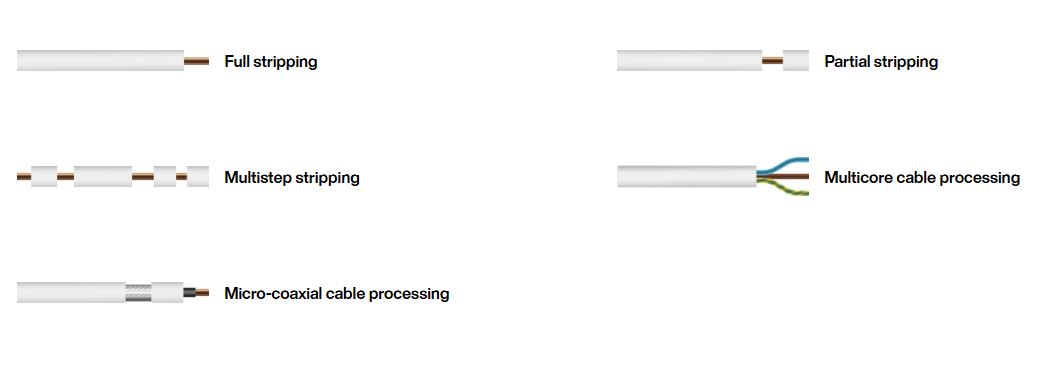

The CoaxStrip 5300 RX strips extremely thin microcoaxial cables with inner diameters as small as 0.07 mm (42 AWG)—thinner than a human hair—in very short cycle times. This machine handles materials that are virtually impossible to strip by hand. It accommodates a wide range of materials, processing microcoaxial, conformable, and triaxial cables, as well as multiconductor cables. Its high-speed rotary stripping head design ensures maximum precision and minimizes downtime due to maintenance. Built to high standards of accuracy and reliability, the CoaxStrip 5300 RX is used in the medical industry and for various antenna-related components across different sectors.
