| Wire cross section min. | 0.13 mm² |
|---|---|
| Wire cross section max. | 6.0 mm² |
| Wire length, single-sided processing min. | 60 mm |
| Wire length, processing on both sides min. | 60 mm |
| Wire length, processing on both sides (optional from) min. | 30 mm |
| Wire length max. | 65000 mm |
| Strip length side 1 min. | 0.1 mm |
| Strip length side 1 max. | 29.5 mm |
| Strip length side 2 min. | 0.1 mm |
| Strip length side 2 max. | 29.5 mm |
| Strip length, full stripping side 1 with wire outer diameter 1mm/0.4 inch (blade in wire line) max. | 15 mm |
| Strip length, full stripping side 1 for wire outer diameter 2mm/0.08 inch (blade in wire line) max. | 14.9 mm |
| Strip length, full stripping side 1 for wire outer diameter 4mm/0.16 inch (blade in wire line) max. | 14.5 mm |
| Strip length, full stripping side 2 for wire outer diameter 1mm/0.04 inch (blade in wire line) max. | 16 mm |
| Strip length, full stripping side 2 for wire outer diameter 2mm/0.08 inch (blade in wire line) max. | 16 mm |
| Strip length, full stripping side 2 for wire outer diameter 4mm/0.16 inch (blade in wire line) max. | 15.5 mm |
| Strip length, partial stripping side 1 (blade in wire line) max. | 15.5 mm |
| Strip length, partial stripping side 2 (blade in wire line) max. | 15.5 mm |
| Wire outer diameter max. | 5.1 mm |
| Number of process modules side 1 | 2 |
| Number of process modules side 2 | 2 |
| Wire draw-in speed max. | 9 m/s |
| Length accuracy | Repetition accuracy: ± (0.2% + 1.0mm) |
| Noise level (without crimp modules) max. | 80 dB |
| Electrical connection | 3 × 208 – 480V 50/60Hz; 5.6kVA |
| Electrical connection (optional) | 3×400V, 50/60Hz, neutral required, 5.6kVA |
| Minimum permissible cross section of connection lines | 5 x 4 mm² |
| Compressed-air connection | 5 – 8 bar |
| Wire protection/ground | 32 |
| Air consumption with wire length of 500mm (19.7inch) (Crimp/Crimp) | 7 m³/h |
| Air consumption with wire length 500mm & 19.7 inch (Seal Crimp/Seal Crimp) | 11 m³/h |
| Recommended operating pressure ±0.5bar/7.25psi | 6 bar |
| Operation outside the recommended operating pressure | Non-compliance with the recommended operating pressure can restrict the proper functioning of peripheral devices. Please also observe the technical data for peripheral devices. |
| Maximum permissible operating pressure depending on the ambient temperature | 6.5 bar to 40 °C/6 bar above 40 °C |
| Weight (approx.) | 1300 kg |
| Weight (including 2 crimp modules) approx. | 1300 kg |
| Width | 1525 mm |
| Length | 3825 mm |
| Length with basic module 2m/78.74 inch | 3825 mm |
| Length with basic module 4m/187.48 inch | 5770 mm |
| Height (with safety cover closed) | 1790 mm |
| Height (with safety cover open) | 2790 mm |
| Ambient temperature min. | 10 °C |
| Ambient temperature max. | 45 °C |
| Humidity, non-condensing | 30 – 90 % |
| Processing outside the specifications | Processing outside the specifications upon request. In case of doubt, we will be happy to provide processing samples for your wires. |
| Hard, tough wires | In the case of extremely hard, ductile or thick-stranded wires, processing might not be possible even within the cross section range. In case of doubt, Komax will be happy to provide processing samples of your wires. |
Alpha 530
The fully automatic Alpha 530 wire processing machine for crimping and seal insertion on both sides meets high quality requirements for wire cross-sections of 0.13 – 6 mm².

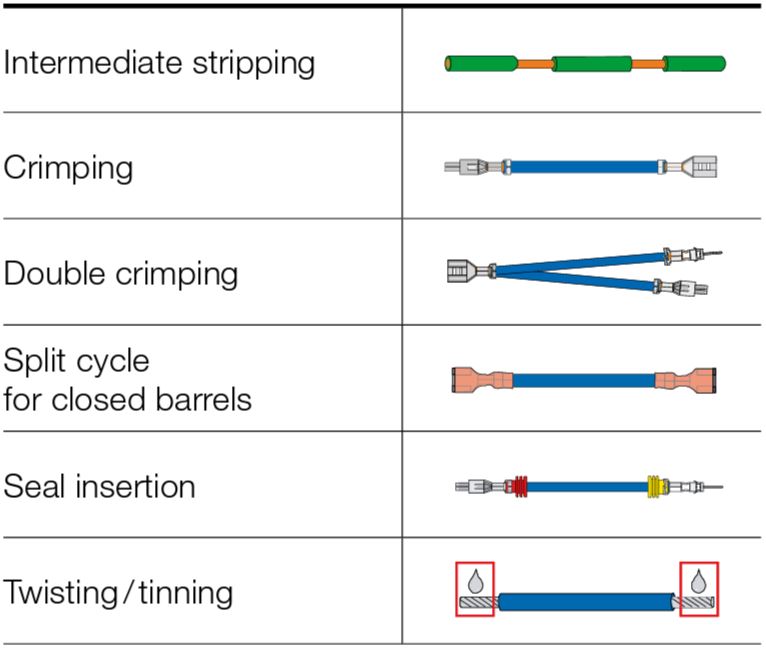

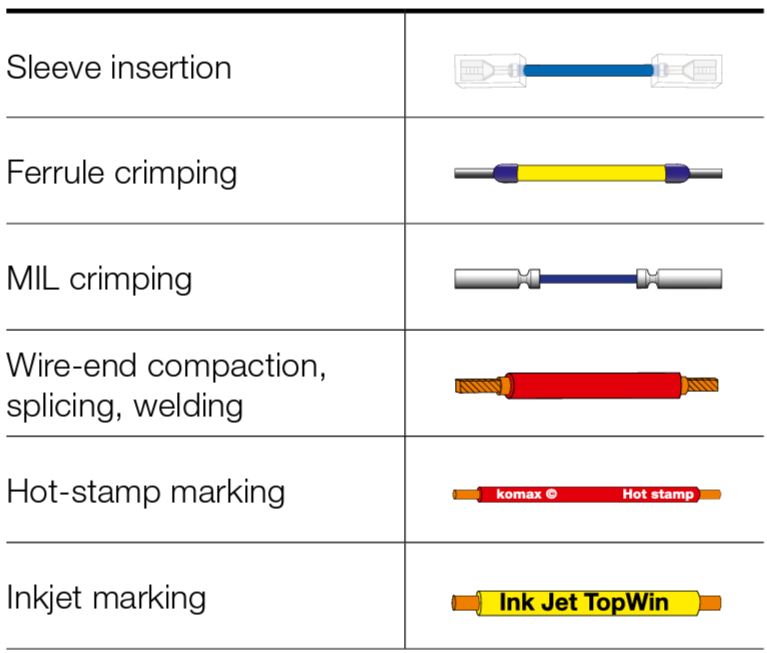

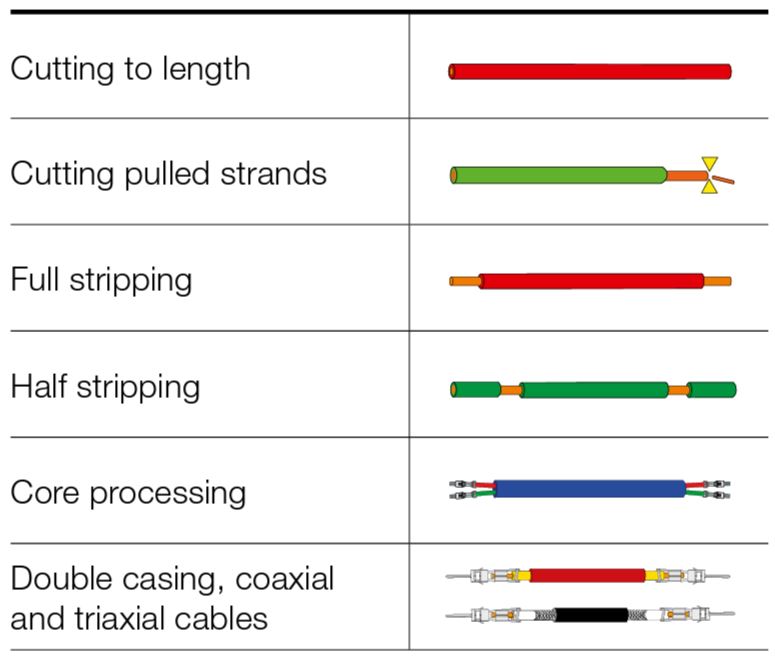

Thanks to flexible configuration, special and complex applications can also be carried out with the Alpha 530. Double crimp, sleeve and ferrule insertion as well as twisting and tinning strands are available on just one machine. Short distances between crimping, wire and cutting stations, LED-illuminated work zones and an intuitive, sequence-controlled and individually configurable user interface increase productivity. The fully automatic wire processing machine also offers short set-up and changeover times. For quality assurance, crimp force monitoring (CFA+/CFA) is built in at the factory; Incision Monitoring (ACD), which detects the slightest contact between the blade and conductor strand during the stripping process, is optional.
- Quick change of guide tubes possible without tools
-
Easy-to-reach tools in a practical drawer under the wire draw-in
-
Smooth steel tray for safe storage of finished wires
-
Efficient setup directly on the crimp module
-
Reliable and fast belt drive with 9m/s draw-in
