The SmartVision software can be used to evaluate micrographs of all standard crimp connections such as B crimp and MIL crimp as well as oval crimp or arbor crimp.

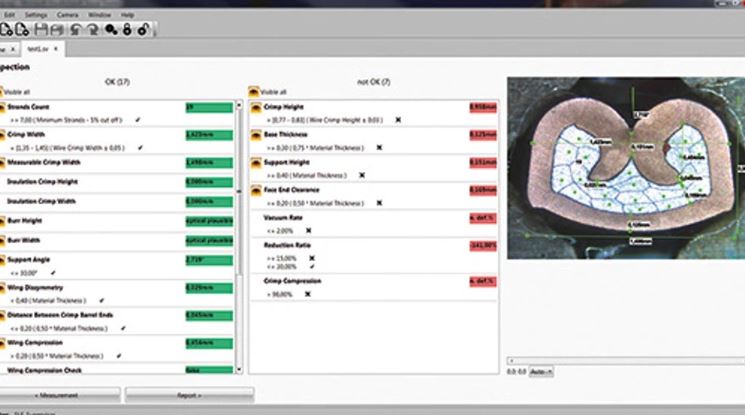

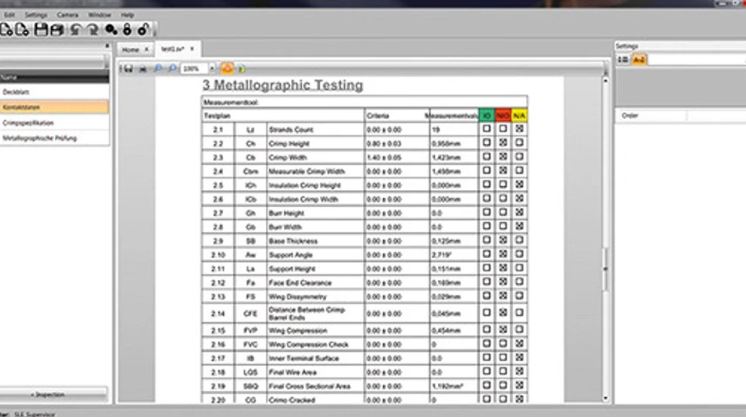

The program includes all the features of professional quality assurance metrology software: Existing standards and software-supported, guided measurement processes ensure fast and reliable quality control. Crimp height, crimp width, cross section and calculations such as compression or vacuum rate can be measured and evaluated. The automatic detection of B-crimp contours ensures that even large quantities per day are precisely controlled. SmartVision is therefore a time-saving, economical element of quality assurance. The software fits perfectly into the production system: The management of rights, report templates, various language variants and other standards can be individually configured.

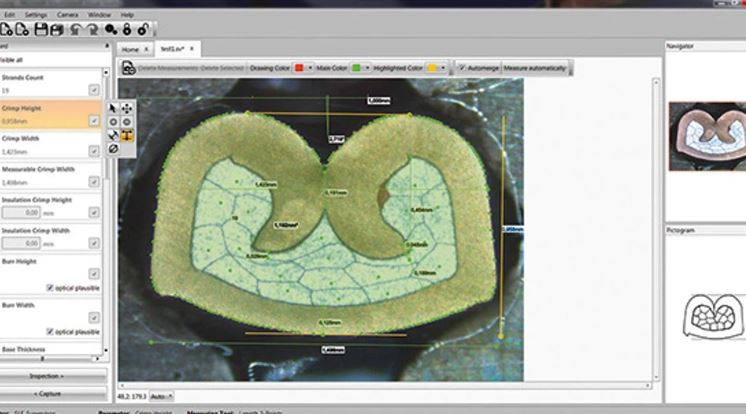

Automatic measurement of B-crimp contours

The “guided measuring” function is available for each measurement. The operator is guided safely and efficiently through the measurement process.
