Mira 670
The powerful Mira 670 stripping machine is an efficient solution for insulated cables up to 26 mm in diameter and 200 mm in length.
The Komax Mira 670 wire stripping machine is the ideal solution for efficiently processing a wide range of wires and insulation materials. With the ability to process wires up to 26 mm in diameter and strip lengths up to 200 mm, it offers high productivity and excellent strip quality. The machine features a 6-blade rotary head that ensures precise processing and high pull-off force. It also offers intelligent design and features to maximize strip quality, such as a parts library and barcode scanning to get the right data in a flash.
Increase productivity with semiautomated wire processing
Mira 670 provides high productivity and consistent cutting quality, leading to higher output and efficiency. It helps SMEs reduce operating costs and increase profitability.
Versatility to meet all customer needs
The Mira 670 is capable of processing a wide range of wires, including long and difficult wires. This gives you an edge over the competition.
Excellent strip quality

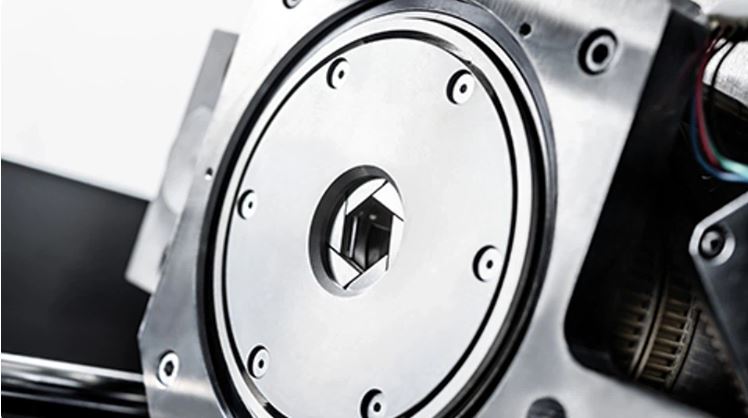

With six blades for precision and powerful stripping force, this tool also offers smart features like adjustable cutting speed and gripping force to improve stripping quality.
High productivity
This fully programmable tool offers time-saving sequential processing of multicore cables. It includes a parts library and barcode scanning for quick part selection.
Share this page
| Specification name | Specification value |
|---|---|
| Wire outer diameter max. | 26 mm |
| Strip length min. | 1 mm |
| Strip length max. | 200 mm |
| Increment of strip length | 0.01 mm |
| Pull-off length min. | 5 mm |
| Pull-off length max. | 200 mm |
| Pull-off length increment | 1 mm |
| Break-out length min. | 160 mm |
| Blade | 6 blades |
| Incision diameter increment | 0.01 mm |
| Wire cross section min. | 2 mm² |
| Wire cross section max. | 150 mm² |
| Gripping force | programmable / adjustable |
| Weight | 75 kg |
| Processing outside the specifications | Processing outside the specifications upon request. In case of doubt, we will be happy to provide processing samples for your wires. |
| Data interface | USB interface for data backup, barcode reader input. Ready for network connection TCP/IP |

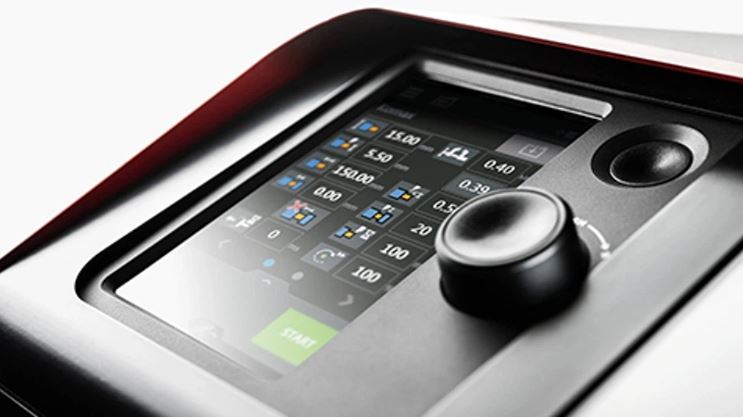

| User interface | 5″ color touchscreen, jog dial |
| Trigger | Sensor, touchscreen, optional foot switch |
