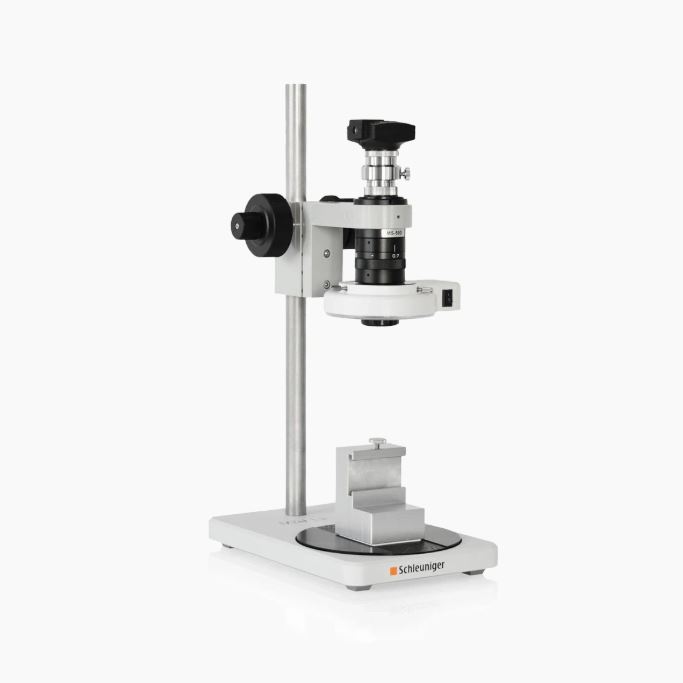

The MacroZoom Unit 1.3 is a component of the MicroGraph System and allows the analysis of pre-cut cross-section samples in real-time using precise optics and powerful software.

The sample inspection system MacroZoom Unit 1.3 uses a lens with 9 incremental zoom levels, which can be calibrated for repeatable and accurate measurements. An optional auxiliary lens expands the field of vision for larger samples. An adjustable LED light ring ensures optimal picture clarity.The CrimpLab software included with this unit is specifically designed for crimp cross-section analysis. Basic functions include measuring height, width, area, and radius values, as well as a strand counter and a crimp area reduction calculator. Images can be stored in multiple formats, with or without measurements. Tolerance specifications can be created for evaluation of the measurements. Once all measurements are captured, the information can be easily transferred to a PDF report.
