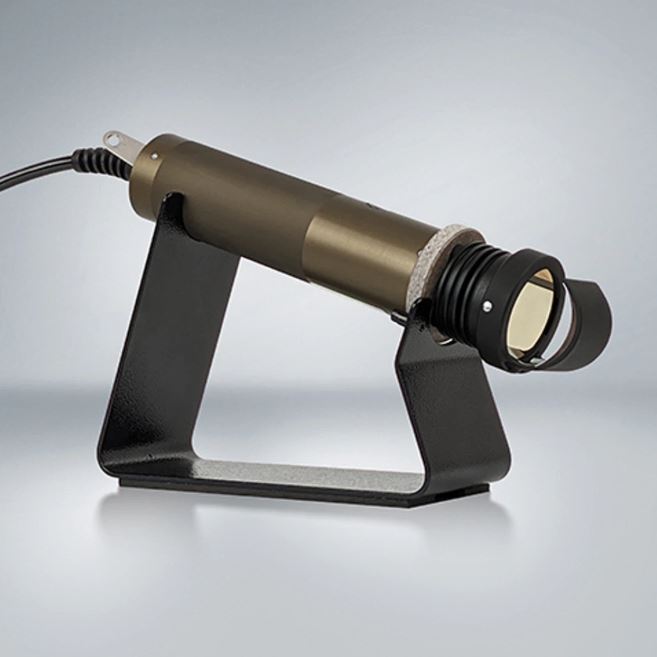

IRMO 230V
The IRMO is an infrared shrinking appliance for products with diameters up to 16 mm (0.6 in). It”s ideal for mobile use thanks to its small size and integrated trigger button.
The IRMO is a hand-held infrared shrinking appliance that is perfect for use in difficult to reach and confined spaces, such as electrical cabinets, as well as for cable harness assembly boards. With its small size and integrated trigger button, it allows for efficient and reliable processing of various components, including heat-shrink tubing, labeling sockets, solder connector and splicing sleeve, end connector and link connectors, screening and coaxial cable connections, in-line component connections, and other related heat-shrink materials and products. To operate the IRMO, the digital control unit IRDC-2000 is required.
Share this page
| Specification name | Specification value |
|---|---|
| Shrinking zone | 35 mm |
| Outer product diameter max. | 16 mm |
| Power | 300 W |
| Emitters | 1 |
| Emitter lifespan (estimate) | 2000 hr |
| Weight | ca. 0.5 kg |
| Dimensions/length | 280 mm |
| Diameter | 50 mm |
| Cable length | 3000 mm |
| Protection type | IP30 |
| Protection class | I |
| Thermal safety | Class 0 |
| Ambient temperature min. | 0 °C |
| Ambient temperature max. | 40 °C |
| Air humidity non-condensing min. | 15 % |
| Air humidity non-condensing max. | 85 % |
